Global Positioning System

Introduction:

  • The Global Positioning System (GPS) was developed in 1978 and monitored by the U.S. Department of Defense (DOD)
  • GPS provides a very precise, global navigation service, which is unaffected by weather, allowing for point-to-point navigation
  • Operates on the L-band: 1100 - 1600
  • Distance measured indirectly with time
  • Properly certified GPS equipment may be used as:
    • A supplemental means of IFR navigation for domestic en route, terminal operations, and certain instrument approach procedures (IAPs)
  • This approval permits the use of GPS in a manner that is consistent with current navigation requirements as well as approved air carrier operations specifications

System Overview:

  • The Global Positioning System is a satellite-based radio navigation system, which broadcasts a signal that is used by receivers to determine precise position anywhere in the world
  • The 24 satellite constellation is designed to ensure at least five satellites are always visible to a user worldwide
  • A minimum of four satellites is necessary for receivers to establish an accurate three-dimensional position
  • The receiver uses data from satellites above the mask angle (the lowest angle above the horizon at which a receiver can use a satellite)
  • The Department of Defense (DOD) is responsible for operating the GPS satellite constellation and monitors the GPS satellites to ensure proper operation
  • Every satellite’s orbital parameters (ephemeris data) are sent to each satellite for broadcast as part of the data message embedded in the GPS signal
  • The GPS coordinate system is the Cartesian earth-centered earth-fixed coordinates as specified in the World Geodetic System 1984 (WGS−84)

System Availability and Reliability

  • Global Positioning System:
    • The status of GPS satellites is broadcast as part of the data message transmitted by the GPS satellites
    • GPS status information is also available by means of the U.S. Coast Guard navigation information service: (703) 313−5907, Internet: http://www.navcen.uscg.gov/
    • Additionally, satellite status is available through the Notice to Airmen (NOTAM) system
  • Global Navigation Satellite System:
    • GNSS operational status depends on the type of equipment being used
    • For GPS-only equipment TSO-C129 or TSO­C196(), the operational status of non-precision approach capability for flight planning purposes is provided through a prediction program that is embedded in the receiver or provided separately

Receiver Autonomous Integrity Monitoring (RAIM):

  • RAIM is the capability of a GPS receiver to perform integrity monitoring on itself by ensuring available satellite signals meet the integrity requirements for a given phase of flight
    • RAIM provides immediate feedback to the pilot that without, provides no assurance of the GPS position integrity
  • This fault detection is critical for performance­based navigation (PBN) (see Paragraph 1-2-1, Performance-Based Navigation (PBN) and Area Navigation (RNAV), for an introduction to PBN), because delays of up to two hours can occur before an erroneous satellite transmission is detected and corrected by the satellite control segment
  • RAIM Requirements:
    • At least one satellite, in addition to those required for navigation, must be in view for the receiver to perform the RAIM function; thus, RAIM needs a minimum of 5 satellites in view, or 4 satellites and a barometric altimeter (baro-aiding), to detect an integrity anomaly
      • Baro-aiding satisfies the RAIM requirement in lieu of a fifth satellite
    • Some GPS receivers also have a RAIM capability, called fault detection and exclusion (FDE), that excludes a failed satellite from the position solution; GPS receivers capable of FDE require 6 satellites or 5 satellites with baro-aiding
      • This allows the GPS receiver to isolate the corrupt satellite signal, remove it from the position solution, and still provide an integrity-assured position
    • To ensure that baro-aiding is available, the current altimeter setting must be entered into the receiver as described in the operating manual
    • Do not use the GPS derived altitude due to the large GPS vertical errors that will make the integrity monitoring function invalid
  • RAIM messages vary somewhat between receivers; however, generally there are two types:
    1. The first type of message indicates that there are not enough satellites available to provide RAIM integrity monitoring so while the solution may be acceptable, there is no integrity of the solution, and;
    2. Another type indicates that the RAIM integrity monitor has detected a potential error and that there is an inconsistency in the navigation solution for the given phase of flight

Accuracy:

  • Accuracy is separated into two services:
    • Standard Position Service (SPS):
      • Available to all users with a 95% probability of horizontal accuracy within 100 meters (328 feet)
      • 99.99% probability of vertical accuracy within 156 meters
      • Selective Availability: degrades SPS to this level of accuracy, turned off as of May 1, 2000
    • Precise Positioning Service (PPS):
      • Were limited users (military, government)
      • Accuracy within 22m horizontal, 27.7m vertical
  • The DOD declared initial operational capability (IOC) of the U.S. GPS on December 8, 1993
  • The FAA has granted approval for U.S. civil operators to use properly certified GPS equipment as a primary means of navigation in oceanic airspace and certain remote areas

Components:

  • Space segment – Satellites
  • Control segment – Ground based monitoring
  • User segment – Aircraft (antennas and receiver/processors)

Function:

  • Concept of ranging and triangulation
  • Uses satellites above the mask angle (lowest angle above the horizon at which it can use a satellite)
  • Each satellite transmits a course/acquisition (CA) code
  • Travels at 186,000 miles per second
  • The signal also contains the satellites position (ephemeris)
  • At least 4 satellites are required to provide a three-dimensional position (latitude, longitude, and altitude) and time solution
  • 24 Satellites in the constellation (1 for each time zone with about 6 back-ups) orbit the earth at 11,000 NM
  • A pseudo-random code timing signal and data message that the aircraft processes to obtain satellite position and status
  • By knowing the location of each satellite and matching timing with atomic clocks on the satellites the aircraft equipment can measure the time and thus position
  • 5 satellites ensured to be in view at all times
  • Monitored on the ground by 5 monitoring stations, 3 ground antennas and a master control station
  • Each GPS transmits a specific code called a Course/Acquisition (CA) code
  • The GPS receiver matches each satellite’s CA code with an identical copy of the code contained in the receivers database. By shifting its copy of the code in a matching process, and by comparing this shift with its internal clock, the receiver can calculate how long it took the signal to travel from the satellite to the receiver

Distance Measuring:

  • Receiver sends signal to satellite
  • Each satellite transmits specific course acquisition code back to the receiver
  • Receiver calculates distance (pseudo-range) from satellite using time signal traveled and speed it traveled at (approx. speed of sound)

Triliteration:

  • Needs minimum of 4 satellites to give accurate 3-D position
  • Uses position information obtained from satellites and pseudo-range to determine position in space
  • Accurate timing is important

Correction for Errors:

  • System automatically selects best satellites
  • Most errors can be factored out using math and modeling
  • Ground antenna corrections (Master Control Station)

Using GPS IFR:

  • Strict regulations – database, antenna placement, no hand-helds
  • Using GPS IFR – must be equipped with an operational alternate means of navigation
  • Must have RAIM
  • Pilot must be familiar with GPS system on aircraft
  • Flight plans – if destination does not have an instrument approach, or only has a GPS approach, you must file an alternate

Navigation Modes:

  • En-route: ± 5nm (1 dot = 1 nm)
  • Approach ± 1 nm (1 dot = .2 nm)
  • Inside 2 NM from FAWP ± .3nm (1 dot = .06 nm) – smooth transition
  • Missed = ± 1 NM (if initiated prior to MAWP)
  • Turns should not be initiated until past the MAWP

Differential GPS:

  • 2 Control Centers
  • Over 60 remote broadcast sites
  • Reference receivers correct bias errors at one location with measuring bias errors at a known position
  • Error reduction: accuracy within 1-3 meters (SPS)
  • Gets less accurate as you travel farther away from reference receivers

Selective Availability (SA) and Reliability:

  • SA is a method by which the accuracy of GPS is intentionally degraded in order to deny hostile use of precise GPS positioning data
    • SA was discontinued on May 1, 2000, but many GPS receivers are designed to assume that SA is still active
    • New receivers may take advantage of the discontinuance of SA based on the performance values in ICAO Annex 10, and do not need to be designed to operate outside of that performance

VFR Operations:

  • GPS navigation has become a great asset to VFR pilots by providing increased navigational capabilities and enhanced situational awareness
    • Many aircraft have mounted systems while older aircraft can be supplemented with a that straps to the leg or suctions to the aircraft
  • Although GPS has provided many benefits to the VFR pilot, care most be exercised to ensure that system capabilites are not exceeded
  • VFR pilots should integrate GPS navigation with electronic navigation (when possible), as well as pilotage and dead reckoning
  • GPS receivers used for VFR navigation vary from fully integrated IFR/VFR installation used to support VFR operations to handheld or leg strapped/dash mounted devices
    • The limitations of each type of receiver installation or use must be understood by the pilot to avoid misusing navigation information [Figure 2]
    • Most receivers are not intuitive
    • The pilot must learn the various keystrokes, knob functions, and displays that are used in the operation of the receiver
    • Some manufacturers provide computer-based tutrials or simulations of their receivers that pilots can use to become familiar with operating the equipment
  • When using GPS for VFR operations, RAIM capability, database currency, and antenna location are critical areas of concern
  • RAIM Capability

    • Many VFR GPS receivers and all hand-held units have no RAIM alerting capability which prevents pilots from being alerted to the loss of integrity
    • A systematic cross-check with other navigation techniques would identify this failure, and prevent a serious deviation
    • Be suspicious of the GPS position if a disagreement exists between the two positions
  • Database Currency:

    • In many receivers, an updatable database is used for navigation fixes, airports, and instrument procedures
      • These databases must be maintained to the current update for IFR operation but, despite it being a good idea, no such requirement exists for VFR use
    • However, in many cases, the database drives a moving map display which indicates Special Use Airspace and the various classes of airspace, in addition to other operational information
    • Without a current database the moving map display may be outdated and offer erroneous information around critical airspace areas, such as a Restricted Area or a Class B airspace segment
    • Numerous pilots have ventured into airspace they were trying to avoid by using an outdated database
    • If you don’t have a current database in the receiver, disregard the moving map display for critical navigation decisions
    • In addition, waypoints are added, removed, relocated, or renamed as required to meet operational needs. When using GPS to navigate relative to a named fix, a current database must be used to properly locate a named waypoint
    • Without the update, it is the pilot’s responsibility to verify the waypoint location referencing to an official current source, such as the Airport/Facility Directory, Sectional Chart, or En Route Chart
  • Antenna Location:

    • The antenna location for GPS receivers used for VFR and IFR operations may differ
      • In many VFR installations of GPS receivers, antenna location is more a matter of convenience than performance
      • In IFR installations, care is exercised to ensure that an adequate clear view is provided for the antenna to see satellites
    • If an alternate location is used, some portion of the aircraft may block the view of satellites from the antenna, causing a greater opportunity to lose navigation signal
    • The use of hand-held receivers for VFR operations, such as the Garmin GPSMAP 696 Color Portable Aviation GPS, is a growing trend, especially among rental pilots. Typically, suction cups are used to place the GPS antennas on the inside of cockpit windows. While this method has great utility, the antenna location is limited to the cockpit or cabin only and is rarely optimized to provide a clear view of available satellites. Consequently, signal losses may occur in certain situations of aircraft-satellite geometry, causing a loss of navigation signal. These losses, coupled with a lack of RAIM capability, could present erroneous position and navigation information with no warning to the pilot
    • While the use of a hand-held GPS for VFR operations is not limited by regulation, modification of the aircraft, such as installing a panel or yoke-mounted holder, is governed by 14 CFR Part 43. Consult with your mechanic to ensure compliance with the regulation, and a safe installation
  • Do not solely rely on GPS for VFR navigation. No design standard of accuracy or integrity is used for a VFR GPS receiver. VFR GPS receivers should be used in conjunction with other forms of navigation during VFR operations to ensure a correct route of flight is maintained. Minimize head−down time in the aircraft by being familiar with your GPS receiver’s operation and by keeping eyes outside scanning for traffic, terrain, and obstacles

VFR Waypoints:

  • VFR waypoints provide VFR pilots with a supplementary tool to assist with position awareness while navigating visually in aircraft equipped with area navigation receivers
    GPS Waypoint Names

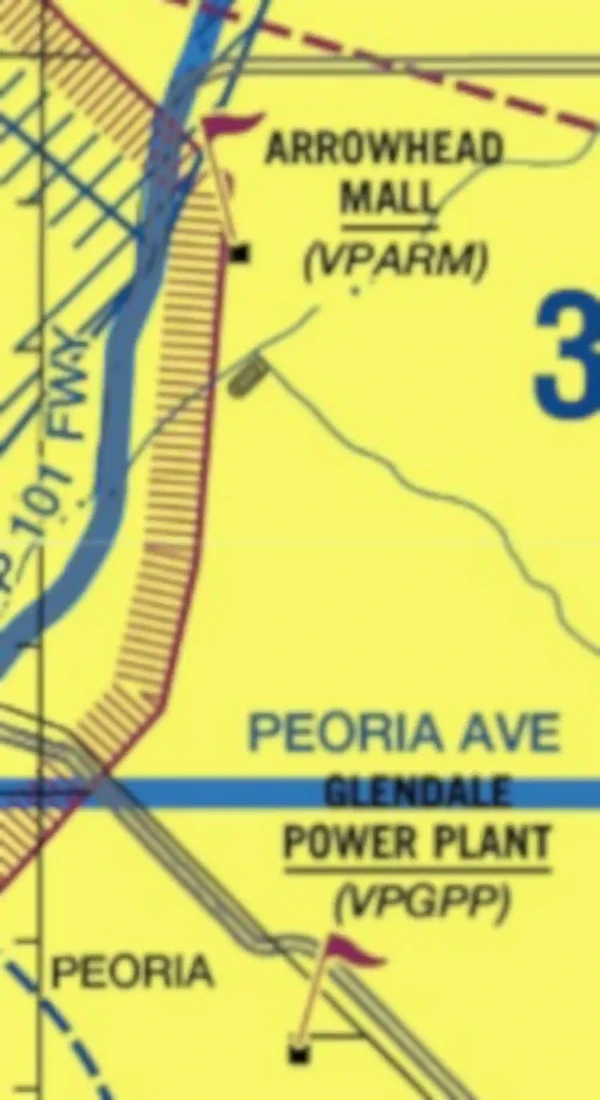

    Figure 1: GPS Waypoint Names
    • The uses of VFR waypoints include providing navigational aids for pilots unfamiliar with an area, waypoint definition of existing reporting points, enhanced navigation in and around Class B and Class C airspace, and enhanced navigation around Special Use Airspace
    • VFR pilots should rely on appropriate and current aeronautical charts published specifically for visual navigation
    • If operating in a terminal area, pilots should take advantage of the Terminal Area Chart available for that area, if published
    • The use of VFR waypoints does not relieve the pilot of any responsibility to comply with the operational requirements of 14 CFR Part 91
  • VFR waypoint names (for computer-entry and flight plans) consist of five letters beginning with the letters "VP" and are retrievable from navigation databases [Figure 1]
    • The VFR waypoint names are not intended to be pronounceable, and they are not for use in ATC communications. On VFR charts, stand-alone VFR waypoints will be portrayed using the same four-point star symbol used for IFR waypoints. VFR waypoints collocated with visual check points on the chart will be identified by small magenta flag symbols. VFR waypoints collocated with visual check points will be pronounceable based on the name of the visual check point and may be used for ATC communications. Each VFR waypoint name will appear in parentheses adjacent to the geographic location on the chart. Latitude/longitude data for all established VFR waypoints may be found in the appropriate regional Airport/Facility Directory (A/FD)
  • .
  • Pilots may use the VFR waypoints only when operating under VFR conditions
    • VFR waypoints must not be used to plan flights under IFR
    • VFR waypoints will not be recognized by the IFR system and will be rejected for IFR routing purposes
  • Pilots may use the five−letter identifier as a waypoint in the route of flight section on a VFR flight plan. The point may represent an intended course change or describe the planned route of flight. This VFR filing would be similar to how a VOR would be used in a route of flight
  • VFR waypoints intended for use during flight should be loaded into the receiver while on the ground. Once airborne, pilots should avoid program ming routes or VFR waypoint chains into their receivers
  • Pilots should be especially vigilant for other traffic while operating near VFR waypoints
    • The same effort to see and avoid other aircraft near VFR waypoints will be necessary, as was the case with VORs and NDBs in the past. In fact, the increased accuracy of navigation through the use of GPS will demand even greater vigilance, as off-course deviations among different pilots and receivers will be less. Regardless of the class of airspace, monitor the available ATC frequency closely for information on other aircraft operating in the vicinity. See paragraph 7−5−2, VFR in Congested Areas, for more information

IFR Use of GPS:

  • Authorization to conduct any GPS operation under IFR requires that:
    • GPS navigation equipment used for IFR operations must be approved in accordance with the requirements specified in Technical Standard Order (TSO) TSO−C129(), TSO−C196(), TSO−C145(), or TSO−C146(), and the installation must be done in accordance with Advisory Circular AC 20−138(), Airworthiness Approval of Positioning and Navigation Systems. Equipment approved in accordance with TSO−C115a does not meet the requirements of TSO−C129. Visual flight rules (VFR) and hand−held GPS systems are not authorized for IFR navigation, instrument approaches, or as a principal instrument flight reference
    • Aircraft using un-augmented GPS (TSO-C129() or TSO-C196()) for navigation under IFR must be equipped with an alternate approved and operational means of navigation suitable for navigating the proposed route of flight. (Examples of alternate navigation equipment include VOR or DME/DME/IRU capability). Active monitoring of alternative navigation equipment is not required when RAIM is available for integrity monitoring. Active monitoring of an alternate means of navigation is required when the GPS RAIM capability is lost
    • Procedures must be established for use in the event that the loss of RAIM capability is predicted to occur. In situations where RAIM is predicted to be unavailable, the flight must rely on other approved navigation equipment, re-route to where RAIM is available, delay departure, or cancel the flight
    • The GPS operation must be conducted in accordance with the FAA−approved aircraft flight manual (AFM) or flight manual supplement. Flight crew members must be thoroughly familiar with the particular GPS equipment installed in the aircraft, the receiver operation manual, and the AFM or flight manual supplement. Operation, receiver presentation and capabilities of GPS equipment vary. Due to these differences, operation of GPS receivers of different brands, or even models of the same brand, under IFR should not be attempted without thorough operational knowledge. Most receivers have a built−in simulator mode, which allows the pilot to become familiar with operation prior to attempting operation in the aircraft
    • Aircraft navigating by IFR−approved GPS are considered to be performance−based navigation (PBN) aircraft and have special equipment suffixes. File the appropriate equipment suffix in accordance with TBL 5−1−3 on the ATC flight plan. If GPS avionics become inoperative, the pilot should advise ATC and amend the equipment suffix
    • Prior to any GPS IFR operation, the pilot must review appropriate NOTAMs and aeronautical information. (See GPS NOTAMs/Aeronautical Information)

Database Requirements:

  • The onboard navigation data must be current and appropriate for the region of intended operation and should include the navigation aids, waypoints, and relevant coded terminal airspace procedures for the departure, arrival, and alternate airfields
  • Further database guidance for terminal and en route requirements may be found in AC 90-100(), U.S. Terminal and En Route Area Navigation (RNAV) Operations
  • Further database guidance on Required Navigation Performance (RNP) instrument approach operations, RNP terminal, and RNP en route requirements may be found in AC 90-105(), Approval Guidance for RNP Operations and Barometric Vertical Navigation in the U.S. National Airspace System
  • All approach procedures to be flown must be retrievable from the current airborne navigation database supplied by the equipment manufacturer or other FAA−approved source. The system must be able to retrieve the procedure by name from the aircraft navigation database, not just as a manually entered series of waypoints. Manual entry of waypoints using latitude/longitude or place/bearing is not permitted for approach procedures
  • Prior to using a procedure or waypoint retrieved from the airborne navigation database, the pilot should verify the validity of the database. This verification should include the following preflight and inflight steps:
    • Preflight:
      • Determine the date of database issuance, and verify that the date/time of proposed use is before the expiration date/time
      • Verify that the database provider has not published a notice limiting the use of the specific waypoint or procedure
    • Inflight:
      • Determine that the waypoints and transition names coincide with names found on the procedure chart. Do not use waypoints which do not exactly match the spelling shown on published procedure charts
      • Determine that the waypoints are logical in location, in the correct order, and their orientation to each other is as found on the procedure chart, both laterally and vertically
        • There is no specific requirement to check each waypoint latitude and longitude, type of waypoint and/or altitude constraint, only the general relationship of waypoints in the procedure, or the logic of an individual waypoint's location
      • If the cursory check of procedure logic or individual waypoint location, specified above, indicates a potential error, do not use the retrieved procedure or waypoint until a verification of latitude and longitude, waypoint type, and altitude constraints indicate full conformity with the published data
  • Air carrier and commercial operators must meet the appropriate provisions of their approved operations specifications
    • During domestic operations for commerce or for hire, operators must have a second navigation system capable of reversion or contingency operations
    • Operators must have two independent navigation systems appropriate to the route to be flown, or one system that is suitable and a second, independent backup capability that allows the operator to proceed safely and land at a different airport, and the aircraft must have sufficient fuel (reference 14 CFR 121.349, 125.203, 129.17, and 135.165). These rules ensure the safety of the operation by preventing a single point of failure
      • n aircraft approved for multi-sensor navigation and equipped with a single navigation system must maintain an ability to navigate or proceed safely in the event that any one component of the navigation system fails, including the flight management system (FMS). Retaining a FMS-independent VOR capability would satisfy this requirement
    • The requirements for a second system apply to the entire set of equipment needed to achieve the navigation capability, not just the individual components of the system such as the radio navigation receiver. For example, to use two RNAV systems (e.g., GPS and DME/DME/IRU) to comply with the requirements, the aircraft must be equipped with two independent radio navigation receivers and two independent navigation computers (e.g., flight management systems (FMS)). Alternatively, to comply with the requirements using a single RNAV system with an installed and operable VOR capability, the VOR capability must be independent of the FMS
    • To satisfy the requirement for two independent navigation systems, if the primary navigation system is GPS−based, the second system must be independent of GPS (for example, VOR or DME/DME/IRU). This allows continued navigation in case of failure of the GPS or WAAS services. Recognizing that GPS interference and test events resulting in the loss of GPS services have become more common, the FAA requires operators conducting IFR operations under 14 CFR 121.349, 125.203, 129.17 and 135.65 to retain a non-GPS navigation capability consisting of either DME/DME, IRU, or VOR for en route and terminal operations, and VOR and ILS for final approach. Since this system is to be used as a reversionary capability, single equipage is sufficient

Oceanic, Domestic, En Route, and Terminal Area Operations:

  • GPS IFR operations in oceanic areas is only permitted when approved avionics systems are installed

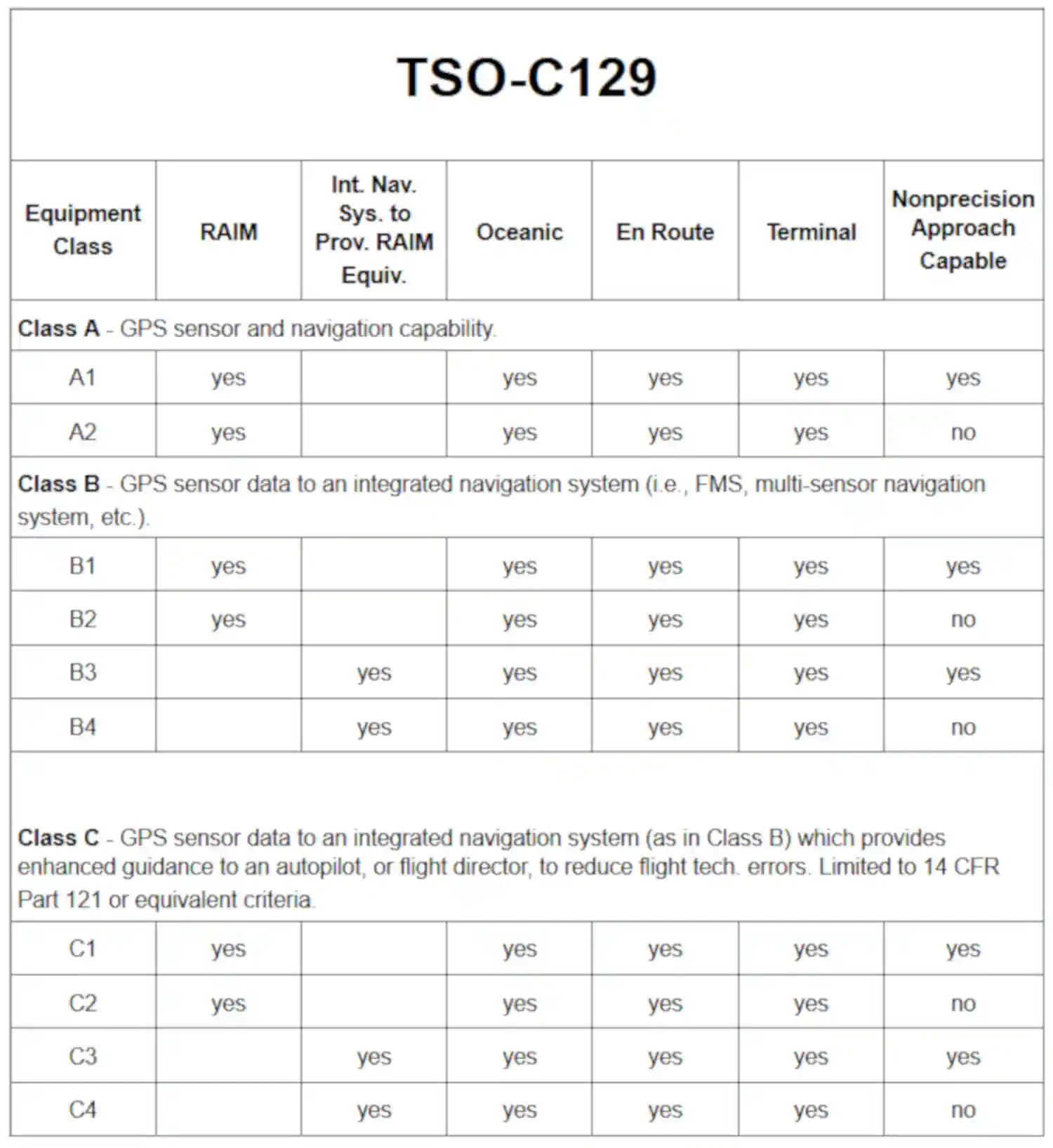

    • TSO-C196() users and TSO-C129() GPS users authorized for Class A1, A2, B1, B2, C1, or C2 operations may use GPS in place of another approved means of long-range navigation, such as dual INS [Figure 1/2]
      • Aircraft with a single installation GPS, meeting the above specifications, are authorized to operate on short oceanic routes requiring one means of long-range navigation in accordance with AC 20­138, Appendix 1
  • Conduct GPS domestic, en route, and terminal IFR operations only when approved avionics systems are installed
    • Pilots may use GPS via TSO−C129() authorized for Class A1, B1, B3, C1, or C3 operations GPS via TSO-C196(); or GPS/WAAS with either TSO-C145() or TSO-C146(). When using TSO-C129() or TSO-C196() receivers, the avionics necessary to receive all of the ground−based facilities appropriate for the route to the destination airport and any required alternate airport must be installed and operational. Ground−based facilities necessary for these routes must be operational
      • GPS en route IFR operations may be conducted in Alaska outside the operational service volume of ground-based navigation aids when a TSO-C145() or TSO-C146() GPS/wide area augmentation system (WAAS) system is installed and operating. WAAS is the U.S. version of a satellite-based augmentation system (SBAS)
        • In Alaska, aircraft may operate on GNSS Q­routes with GPS (TSO­C129 () or TSO­C196 ()) equipment while the aircraft remains in Air Traffic Control (ATC) radar surveillance or with GPS/WAAS (TSO­C145 () or TSO­C146 ()) which does not require ATC radar surveillance
        • In Alaska, aircraft may only operate on GNSS T­routes with GPS/WAAS (TSO­C145 () or TSO­C146 ()) equipment
      • Ground-based navigation equipment is not required to be installed and operating for en route IFR operations when using GPS/WAAS navigation systems. All operators should ensure that an alternate means of navigation is available in the unlikely event the GPS/WAAS navigation system becomes inoperative
      • Q-routes and T-routes outside Alaska. Q­routes require system performance currently met by GPS, GPS/WAAS, or DME/DME/IRU RNAV systems that satisfy the criteria discussed in AC 90-100(), U.S. Terminal and En Route Area Navigation (RNAV) Operations. T­routes require GPS or GPS/WAAS equipment. See. AIM (5-3-4) Airways and Route Systemsfor more information
  • GPS IFR approach/departure operations can be conducted when approved avionics systems are installed and the following requirements are met:
    • The aircraft is TSO-C145() or TSO-C146() or TSO-C196() or TSO-C129() in Class A1, B1, B3, C1, or C3; and
    • The approach/departure must be retrievable from the current airborne navigation database in the navigation computer. The system must be able to retrieve the procedure by name from the aircraft navigation database. Manual entry of waypoints using latitude/longitude or place/bearing is not permitted for approach procedures
    • The authorization to fly instrument approaches/departures with GPS is limited to U.S. airspace
    • The use of GPS in any other airspace must be expressly authorized by the FAA Administrator
    • GPS instrument approach/departure operations outside the U.S. must be authorized by the appropriate sovereign authority

GPS IFR Equipment Classes/Categories
Figure 2: GPS IFR Equipment Classes/Categories
GPS Approval Required/Authorized Use

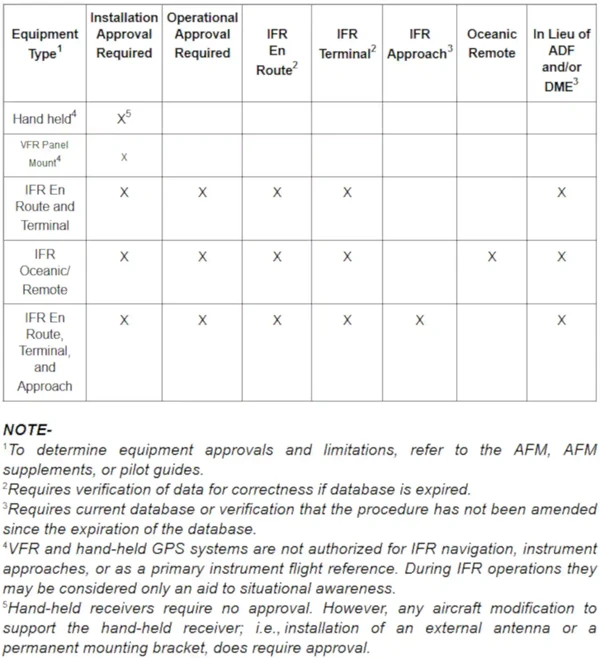

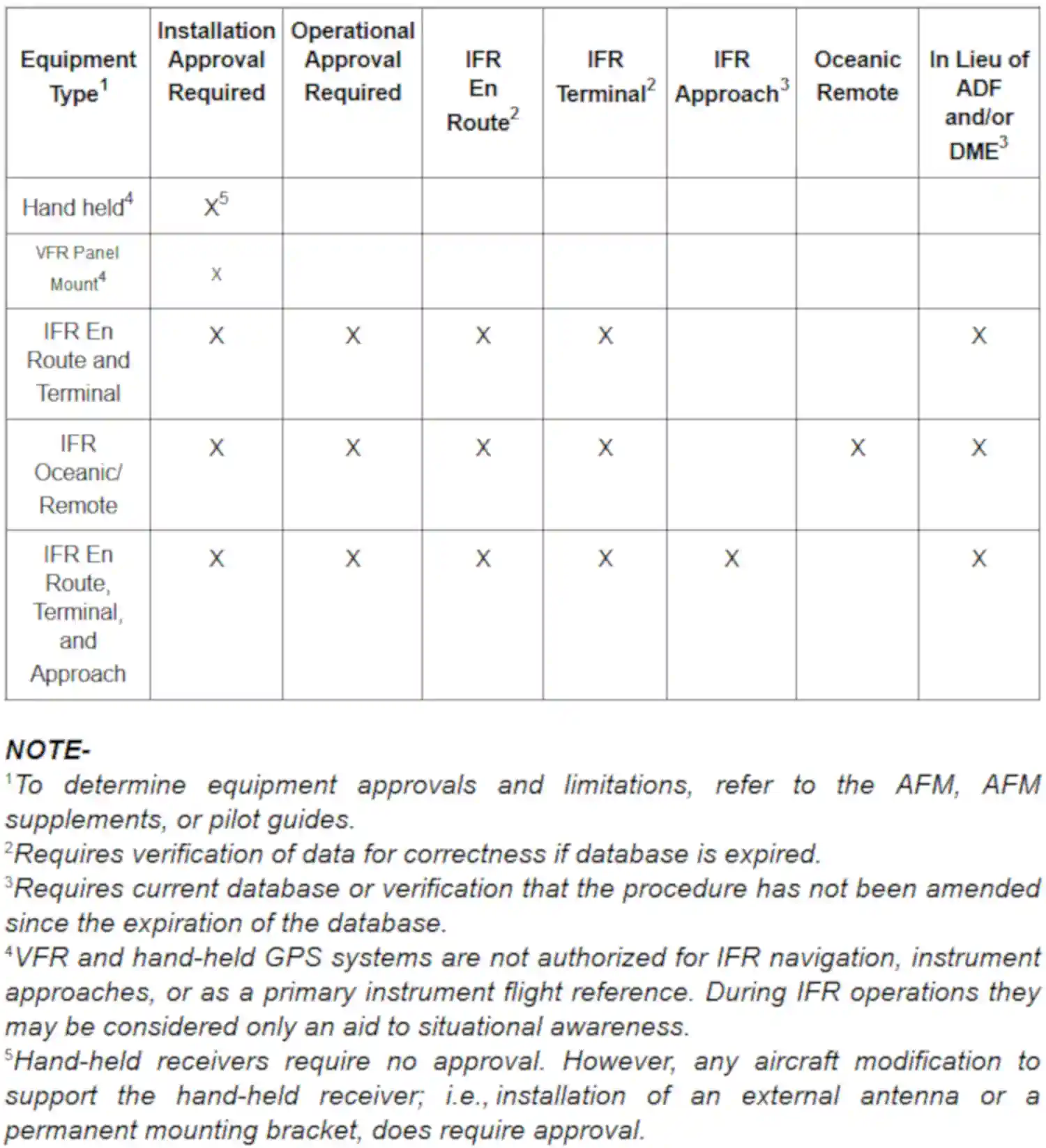

Figure 3: GPS Approval Required/Authorized Use
    • As the production of stand-alone GPS approaches has progressed, many of the original overlay approaches have been replaced with stand-alone procedures specifically designed for use by GPS systems. A GPS approach overlay allows pilots to use GPS avionics under IFR for flying designated nonprecision instrument approach procedures, except LOC, LDA, and simplified directional facility (SDF) procedures. These procedures are identified by the name of the procedure and “or GPS” (for example, VOR/DME or GPS RWY15). Other previous types of overlays have either been converted to this format or replaced with stand-alone procedures. Only approaches contained in the current on-board navigation database are authorized. The navigation database may contain information about non-overlay approach procedures that is intended to be used to enhance position orientation, generally by providing a map, while flying these approaches using conventional NAVAIDs. This approach information should not be confused with a GPS overlay approach. (See the receiver operating manual, AFM, or AFM Supplement for details on how to identify these approaches in the navigation database.)

GPS Approach Procedures:

  • As the production of stand-alone GPS approaches has progressed, many of the original overlay approaches have been replaced with stand-alone procedures specifically designed for use by GPS systems. The title of the remaining GPS overlay procedures has been revised on the approach chart to "or GPS" (e.g., VOR or GPS RWY 24). Therefore, all the approaches that can be used by GPS now contain "GPS" in the title (e.g., "VOR or GPS RWY 24," "GPS RWY 24," or "RNAV (GPS) RWY 24"). During these GPS approaches, underlying ground-based NAVAIDs are not required to be operational and associated aircraft avionics need not be installed, operational, turned on or monitored (monitoring of the underlying approach is suggested when equipment is available and functional). Existing overlay approaches may be requested using the GPS title, such as "GPS RWY 24" for the VOR or GPS RWY 24. NOTE− Any required alternate airport must have an approved instrument approach procedure other than GPS that is anticipated to be operational and available at the estimated time of arrival, and which the aircraft is equipped to fly

Waypoints:

  • GPS approaches make use of both fly-over and fly-by waypoints. Fly-by waypoints are used when an aircraft should begin a turn to the next course prior to reaching the waypoint separating the two route segments. This is known as turn anticipation and is compensated for in the airspace and terrain clearances. Approach waypoints, except for the MAWP and the missed approach holding waypoint (MAHWP), are normally fly-by waypoints. Fly-over waypoints are used when the aircraft must fly over the point prior to starting a turn. New approach charts depict fly-over waypoints as a circled waypoint symbol. Overlay approach charts and some early stand alone GPS approach charts may not reflect this convention
  • Since GPS receivers are basically “To−To” navigators, they must always be navigating to a defined point. On overlay approaches, if no pronounceable five-character name is published for an approach waypoint or fix, it was given a database identifier consisting of letters and numbers. These points will appear in the list of waypoints in the approach procedure database, but may not appear on the approach chart. A point used for the purpose of defining the navigation track for an airborne computer system (i.e., GPS or FMS) is called a Computer Navigation Fix (CNF). CNFs include unnamed DME fixes, beginning and ending points of DME arcs and sensor final approach fixes (FAFs) on some GPS overlay approaches. To aid in the approach chart/database correlation process, the FAA has begun a program to assign five-letter names to CNFs and to chart CNFs on various FAA Aeronautical Navigation Products (AeroNav Products). These CNFs are not to be used for any air traffic control (ATC) application, such as holding for which the fix has not already been assessed. CNFs will be charted to distinguish them from conventional reporting points, fixes, intersections, and waypoints. The CNF name will be enclosed in parenthesis, e.g., (CFBCD), and the name will be placed next to the CNF it defines. If the CNF is not at an existing point defined by means such as crossing radials or radial/DME, the point will be indicated by an “X.” The CNF name will not be used in filing a flight plan or in aircraft/ATC communications. Use current phraseology, e.g., facility name, radial, distance, to describe these fixes
  • Unnamed waypoints in the database will be uniquely identified for each airport but may be repeated for another airport (e.g., RW36 will be used at each airport with a runway 36 but will be at the same location for all approaches at a given airport)
  • The runway threshold waypoint, which is normally the MAWP, may have a five letter identifier (e.g., SNEEZ) or be coded as RW## (e.g., RW36, RW36L). Those thresholds which are coded as five letter identifiers are being changed to the RW## designation. This may cause the approach chart and database to differ until all changes are complete. The runway threshold waypoint is also used as the center of the Minimum Safe Altitude (MSA) on most GPS approaches. MAWPs not located at the threshold will have a five letter identifier

Position Orientation:

  • As with most RNAV systems, pilots should pay particular attention to position orientation while using GPS. Distance and track information are provided to the next active waypoint, not to a fixed navigation aid. Receivers may sequence when the pilot is not flying along an active route, such as when being vectored or deviating for weather, due to the proximity to another waypoint in the route. This can be prevented by placing the receiver in the non-sequencing mode. When the receiver is in the non-sequencing mode, bearing and distance are provided to the selected waypoint and the receiver will not sequence to the next waypoint in the route until placed back in the auto sequence mode or the pilot selects a different waypoint. On overlay approaches, the pilot may have to compute the along-track distance to step-down fixes and other points due to the receiver showing along-track distance to the next waypoint rather than DME to the VOR or ILS ground station

Conventional Versus GPS Navigation Data:

  • There may be slight differences between the course information portrayed on navigational charts and a GPS navigation display when flying authorized GPS instrument procedures or along an airway. All magnetic tracks defined by any conventional navigation aids are determined by the application of the station magnetic variation. In contrast, GPS RNAV systems may use an algorithm, which applies the local magnetic variation and may produce small differences in the displayed course. However, both methods of navigation should produce the same desired ground track when using approved, IFR navigation system. Should significant differences between the approach chart and the GPS avionics' application of the navigation database arise, the published approach chart, supplemented by NOT- AMs, holds precedence. Due to the GPS avionics’ computation of great circle courses, and the variations in magnetic variation, the bearing to the next waypoint and the course from the last waypoint (if available) may not be exactly 180 apart when long distances are involved. Variations in distances will occur since GPS distance-to-waypoint values are along-track distances (ATD) computed to the next waypoint and the DME values published on underlying procedures are slant-range distances measured to the station. This difference increases with aircraft altitude and proximity to the NAVAID

Departures and Instrument Departure Procedures (DPs):

  • The GPS receiver must be set to terminal (±1 NM) CDI sensitivity and the navigation routes contained in the database in order to fly published IFR charted departures and DPs
    • Terminal RAIM should be automatically provided by the receiver. (Terminal RAIM for departure may not be available unless the waypoints are part of the active flight plan rather than proceeding direct to the first destination)
  • Certain segments of a DP may require some manual intervention by the pilot, especially when radar vectored to a course or required to intercept a specific course to a waypoint
  • The database may not contain all of the transitions or departures from all runways and some GPS receivers do not contain DPs in the database
  • It is necessary that helicopter procedures be flown at 70 knots or less since helicopter departure procedures and missed approaches use a 20:1 obstacle clearance surface (OCS), which is double the fixed-wing OCS, and turning areas are based on this speed as well

GPS Instrument Approach Procedures:

  • GPS overlay approaches are designated non-precision instrument approach procedures that pilots are authorized to fly using GPS avionics. Localizer (LOC), localizer type directional aid (LDA), and simplified directional facility (SDF) procedures are not authorized. Overlay procedures are identified by the “name of the procedure” and “or GPS” (e.g., VOR/DME or GPS RWY 15) in the title. Authorized procedures must be retrievable from a current onboard navigation database. The navigation database may also enhance position orientation by displaying a map containing information on conventional NAVAID approaches. This approach information should not be confused with a GPS overlay approach (see the receiver operating manual, AFM, or AFM Supplement for details on how to identify these approaches in the navigation database)
    • Overlay approaches do not adhere to the design criteria described in Paragraph 5-4-5m, Area Navigation (RNAV) Instrument Approach Charts, for stand-alone GPS approaches. Overlay approach criteria is based on the design criteria used for ground-based NAVAID approaches
  • Stand-alone approach procedures specifically designed for GPS systems have replaced many of the original overlay approaches. All approaches that contain “GPS” in the title (e.g., “VOR or GPS RWY 24,” “GPS RWY 24,” or “RNAV (GPS) RWY 24”) can be flown using GPS. GPS-equipped aircraft do not need underlying ground-based NAVAIDs or associated aircraft avionics to fly the approach. Monitoring the underlying approach with ground-based NAVAIDs is suggested when able. Existing overlay approaches may be requested using the GPS title; for example, the VOR or GPS RWY 24 may be requested as “GPS RWY 24.” Some GPS procedures have a Terminal Arrival Area (TAA) with an underlining RNAV approach
  • For flight planning purposes, TSO­C129() and TSO­C196()-equipped users (GPS users) whose navigation systems have fault detection and exclusion (FDE) capability, who perform a preflight RAIM prediction for the approach integrity at the airport where the RNAV (GPS) approach will be flown, and have proper knowledge and any required training and/or approval to conduct a GPS­based IAP, may file based on a GPS-based IAP at either the destination or the alternate airport, but not at both locations. At the alternate airport, pilots may plan for:
    • Lateral navigation (LNAV) or circling minimum descent altitude (MDA);
    • LNAV/vertical navigation (LNAV/VNAV) DA, if equipped with and using approved barometric vertical navigation (baro­VNAV) equipment;
    • RNP 0.3 DA on an RNAV (RNP) IAP, if they are specifically authorized users using approved baro­VNAV equipment and the pilot has verified required navigation performance (RNP) availability through an approved prediction program
  • If the above conditions cannot be met, any required alternate airport must have an approved instrument approach procedure other than GPS-based that is anticipated to be operational and available at the estimated time of arrival, and which the aircraft is equipped to fly
  • Procedures for Accomplishing GPS Approaches:
    • An RNAV (GPS) procedure may be associated with a Terminal Arrival Area (TAA). The basic design of the RNAV procedure is the “T” design or a modification of the “T” (See Paragraph 5-4-5d, Terminal Arrival Area (TAA), for complete information)
    • Pilots cleared by ATC for an RNAV (GPS) approach should fly the full approach from an Initial Approach Waypoint (IAWP) or feeder fix. Randomly joining an approach at an intermediate fix does not assure terrain clearance
    • When an approach has been loaded in the navigation system, GPS receivers will give an “arm” annunciation 30 NM straight line distance from the airport/heliport reference point. Pilots should arm the approach mode at this time if not already armed (some receivers arm automatically). Without arming, the receiver will not change from en-route CDI and RAIM sensitivity of ±5 NM either side of centerline to ±1 NM terminal sensitivity. Where the IAWP is inside this 30 mile point, a CDI sensitivity change will occur once the approach mode is armed and the aircraft is inside 30 NM. Where the IAWP is beyond 30 NM from the airport/heliport reference point and the approach is armed, the CDI sensitivity will not change until the aircraft is within 30 miles of the airport/heliport reference point. Feeder route obstacle clearance is predicated on the receiver being in terminal (±1 NM) CDI sensitivity and RAIM within 30 NM of the airport/heliport reference point; therefore, the receiver should always be armed (if required) not later than the 30 NM annunciation
    • The pilot must be aware of what bank angle/turn rate the particular receiver uses to compute turn anticipation, and whether wind and airspeed are included in the receiver's calculations. This information should be in the receiver operating manual. Over or under banking the turn onto the final approach course may significantly delay getting on course and may result in high descent rates to achieve the next segment altitude
    • When within 2 NM of the Final Approach Waypoint (FAWP) with the approach mode armed, the approach mode will switch to active, which results in RAIM and CDI changing to approach sensitivity. Beginning 2 NM prior to the FAWP, the full scale CDI sensitivity will smoothly change from ±1 NM to ±0.3 NM at the FAWP. As sensitivity changes from ±1 NM to ±0.3 NM approaching the FAWP, with the CDI not centered, the corresponding increase in CDI displacement may give the impression that the aircraft is moving further away from the intended course even though it is on an acceptable intercept heading. Referencing the digital track displacement information (cross track error), if it is available in the approach mode, may help the pilot remain position oriented in this situation. Being established on the final approach course prior to the beginning of the sensitivity change at 2 NM will help prevent problems in interpreting the CDI display during ramp down. Therefore, requesting or accepting vectors which will cause the aircraft to intercept the final approach course within 2 NM of the FAWP is not recommended
    • When receiving vectors to final, most receiver operating manuals suggest placing the receiver in the non-sequencing mode on the FAWP and manually setting the course. This provides an extended final approach course in cases where the aircraft is vectored onto the final approach course outside of any existing segment which is aligned with the runway. Assigned altitudes must be maintained until established on a published segment of the approach. Required altitudes at waypoints outside the FAWP or stepdown fixes must be considered. Calculating the distance to the FAWP may be required in order to descend at the proper location
    • Overriding an automatically selected sensitivity during an approach will cancel the approach mode annunciation. If the approach mode is not armed by 2 NM prior to the FAWP, the approach mode will not become active at 2 NM prior to the FAWP, and the equipment will flag. In these conditions, the RAIM and CDI sensitivity will not ramp down, and the pilot should not descend to MDA, but fly to the MAWP and execute a missed approach. The approach active annunciator and/or the receiver should be checked to ensure the approach mode is active prior to the FAWP
    • Do not attempt to fly an approach unless the procedure in the onboard database is current and identified as “GPS” on the approach chart. The navigation database may contain information about non-overlay approach procedures that enhances position orientation generally by providing a map, while flying these approaches using conventional NAVAIDs. This approach information should not be confused with a GPS overlay approach (see the receiver operating manual, AFM, or AFM Supplement for details on how to identify these procedures in the navigation database). Flying point to point on the approach does not assure compliance with the published approach procedure. The proper RAIM sensitivity will not be available and the CDI sensitivity will not automatically change to ±0.3 NM. Manually setting CDI sensitivity does not automatically change the RAIM sensitivity on some receivers. Some existing non-precision approach procedures cannot be coded for use with GPS and will not be available as overlays
    • Pilots should pay particular attention to the exact operation of their GPS receivers for performing holding patterns and in the case of overlay approaches, operations such as procedure turns. These procedures may require manual intervention by the pilot to stop the sequencing of waypoints by the receiver and to resume automatic GPS navigation sequencing once the maneuver is complete. The same waypoint may appear in the route of flight more than once consecutively (for example, IAWP, FAWP, MAHWP on a procedure turn). Care must be exercised to ensure that the receiver is sequenced to the appropriate waypoint for the segment of the procedure being flown, especially if one or more fly-overs are skipped (for example, FAWP rather than IAWP if the procedure turn is not flown). The pilot may have to sequence past one or more fly-overs of the same waypoint in order to start GPS automatic sequencing at the proper place in the sequence of waypoints
    • Incorrect inputs into the GPS receiver are especially critical during approaches. In some cases, an incorrect entry can cause the receiver to leave the approach mode
    • A fix on an overlay approach identified by a DME fix will not be in the waypoint sequence on the GPS receiver unless there is a published name assigned to it. When a name is assigned, the along track distance (ATD) to the waypoint may be zero rather than the DME stated on the approach chart. The pilot should be alert for this on any overlay procedure where the original approach used DME
    • If a visual descent point (VDP) is published, it will not be included in the sequence of waypoints. Pilots are expected to use normal piloting techniques for beginning the visual descent, such as ATD
    • Unnamed stepdown fixes in the final approach segment may or may not be coded in the waypoint sequence of the aircraft's navigation database and must be identified using ATD. Stepdown fixes in the final approach segment of RNAV (GPS) approaches are being named, in addition to being identified by ATD. However, GPS avionics may or may not accommodate waypoints between the FAF and MAP. Pilots must know the capabilities of their GPS equipment and continue to identify stepdown fixes using ATD when necessary
  • Missed Approach:
    • A GPS missed approach requires pilot action to sequence the receiver past the MAWP to the missed approach portion of the procedure. The pilot must be thoroughly familiar with the activation procedure for the particular GPS receiver installed in the aircraft and must initiate appropriate action after the MAWP. Activating the missed approach prior to the MAWP will cause CDI sensitivity to immediately change to terminal (±1NM) sensitivity and the receiver will continue to navigate to the MAWP. The receiver will not sequence past the MAWP. Turns should not begin prior to the MAWP. If the missed approach is not activated, the GPS receiver will display an extension of the inbound final approach course and the ATD will increase from the MAWP until it is manually sequenced after crossing the MAWP
    • Missed approach routings in which the first track is via a course rather than direct to the next waypoint require additional action by the pilot to set the course. Being familiar with all of the inputs required is especially critical during this phase of flight
  • GPS NOTAMs/Aeronautical Information:
    • GPS satellite outages are issued as GPS NOTAMs both domestically and internationally. However, the effect of an outage on the intended operation cannot be determined unless the pilot has a RAIM availability prediction program which allows excluding a satellite which is predicted to be out of service based on the NOTAM information
    • The terms UNRELIABLE and MAY NOT BE AVAILABLE are used in conjunction with GPS NOTAMs. Both UNRELIABLE and MAY NOT BE AVAILABLE are advisories to pilots indicating the expected level of service may not be available. UNRELIABLE does not mean there is a problem with GPS signal integrity. If GPS service is available, pilots may continue operations. If the LNAV or LNAV/VNAV service is available, pilots may use the displayed level of service to fly the approach. GPS operation may be NOTAMed UNRELIABLE or MAY NOT BE AVAILABLE due to testing or anomalies. (Pilots are encouraged to report GPS anomalies, including degraded operation and/or loss of service, as soon as possible, reference paragraph 1−1−13, and the FAA form here). When GPS testing NOTAMS are published and testing is actually occurring, Air Traffic Control will advise pilots requesting or cleared for a GPS or RNAV (GPS) approach that GPS may not be available and request intentions. If pilots have reported GPS anomalies, Air Traffic Control will request the pilot's intentions and/or clear the pilot for an alternate approach, if available and operational
      • The following is an example of a GPS testing NOTAM: !GPS 06/001 ZAB NAV GPS (INCLUDING WAAS, GBAS, AND ADS­B) MAY NOT BE AVAILABLE WITHIN A 468NM RADIUS CENTERED AT 330702N1062540W (TCS 093044) FL400­UNL DECREASING IN AREA WITH A DECREASE IN ALTITUDE DEFINED AS: 425NM RADIUS AT FL250, 360NM RADIUS AT 10000FT, 354NM RADIUS AT 4000FT AGL, 327NM RADIUS AT 50FT AGL. 1406070300­1406071200
    • Civilian pilots may obtain GPS RAIM availability information for non−precision approach procedures by using a manufacturer-supplied RAIM prediction tool, or using the Service Availability Prediction Tool (SAPT) on the FAA en route and terminal RAIM prediction website. Pilots can also request GPS RAIM aeronautical information from a flight service station during preflight briefings. GPS RAIM aeronautical information can be obtained for a period of 3 hours (for example, if you are scheduled to arrive at 1215 hours, then the GPS RAIM information is available from 1100 to 1400 hours) or a 24−hour timeframe at a particular airport. FAA briefers will provide RAIM information for a period of 1 hour before to 1 hour after the ETA hour, unless a specific timeframe is requested by the pilot. If flying a published GPS departure, a RAIM prediction should also be requested for the departure airport.
    • The military provides airfield specific GPS RAIM NOTAMs for non-precision approach procedures at military airfields. The RAIM outages are issued as M-series NOTAMs and may be obtained for up to 24 hours from the time of request
    • Receiver manufacturers and/or database suppliers may supply “NOTAM” type information concerning database errors. Pilots should check these sources, when available, to ensure that they have the most current information concerning their electronic database
  • Receiver Autonomous Integrity Monitoring (RAIM):
    • RAIM outages may occur due to an insufficient number of satellites or due to unsuitable satellite geometry which causes the error in the position solution to become too large. Loss of satellite reception and RAIM warnings may occur due to aircraft dynamics (changes in pitch or bank angle). Antenna location on the aircraft, satellite position relative to the horizon, and aircraft attitude may affect reception of one or more satellites. Since the relative positions of the satellites are constantly changing, prior experience with the airport does not guarantee reception at all times, and RAIM availability should always be checked
    • If RAIM is not available, use another type of navigation and approach system, select another route or destination, or delay the trip until RAIM is predicted to be available on arrival. On longer flights, pilots should consider rechecking the RAIM prediction for the destination during the flight. This may provide an early indication that an unscheduled satellite outage has occurred since takeoff
    • If a RAIM failure/status annunciation occurs prior to the final approach waypoint (FAWP), the approach should not be completed since GPS no longer provides the required integrity. The receiver performs a RAIM prediction by 2 NM prior to the FAWP to ensure that RAIM is available as a condition for entering the approach mode. The pilot should ensure the receiver has sequenced from “Armed” to “Approach” prior to the FAWP (normally occurs 2 NM prior). Failure to sequence may be an indication of the detection of a satellite anomaly, failure to arm the receiver (if required), or other problems which preclude flying the approach
    • If the receiver does not sequence into the approach mode or a RAIM failure/status annunciation occurs prior to the FAWP, the pilot must not initiate the approach or descend, but instead proceed to the missed approach waypoint (MAWP) via the FAWP, perform a missed approach, and contact ATC as soon as practical. The GPS receiver may continue to operate after a RAIM flag/status annunciation appears, but the navigation information should be considered advisory only. Refer to the receiver operating manual for specific indications and instructions associated with loss of RAIM prior to the FAF
    • If the RAIM flag/status annunciation appears after the FAWP, the pilot should initiate a climb and execute the missed approach. The GPS receiver may continue to operate after a RAIM flag/status annunciation appears, but the navigation information should be considered advisory only. Refer to the receiver operating manual for operating mode information during a RAIM annunciation
  • Waypoints:
    • GPS receivers navigate from one defined point to another retrieved from the aircraft’s onboard navigational database. These points are waypoints (5-letter pronounceable name), existing VHF intersections, DME fixes with 5−letter pronounceable names and 3-letter NAVAID IDs. Each waypoint is a geographical location defined by a latitude/longitude geographic coordinate. These 5−letter waypoints, VHF intersections, 5−letter pronounceable DME fixes and 3−letter NAVAID IDs are published on various FAA aeronautical navigation products (IFR Enroute Charts, VFR Charts, Terminal Procedures Publications, etc.)
    • A Computer Navigation Fix (CNF) is also a point defined by a latitude/longitude coordinate and is required to support Performance−Based Navigation (PBN) operations. The GPS receiver uses CNFs in conjunction with waypoints to navigate from point to point. However, CNFs are not recognized by ATC. ATC does not maintain CNFs in their database and they do not use CNFs for any air traffic control purpose. CNFs may or may not be charted on FAA aeronautical navigation products, are listed in the chart legends, and are for advisory purposes only. Pilots are not to use CNFs for point to point navigation (proceed direct), filing a flight plan, or in aircraft/ATC communications. CNFs that do appear on aeronautical charts allow pilots increased situational awareness by identifying points in the aircraft database route of flight with points on the aeronautical chart. CNFs are random five-letter identifiers, not pronounceable like waypoints and placed in parenthesis. Eventually, all CNFs will begin with the letters “CF” followed by three consonants (for example, CFWBG). This five-letter identifier will be found next to an "x" on enroute charts and possibly on an approach chart. On instrument approach procedures (charts) in the terminal procedures publication, CNFs may represent unnamed DME fixes, beginning and ending points of DME arcs, and sensor (ground-based signal i.e., VOR, NDB, ILS) final approach fixes on GPS overlay approaches. These CNFs provide the GPS with points on the procedure that allow the overlay approach to mirror the ground-based sensor approach. These points should only be used by the GPS system for navigation and should not be used by pilots for any other purpose on the approach. The CNF concept has not been adopted or recognized by the International Civil Aviation Organization (ICAO)
    • GPS approaches use fly−over and fly−by waypoints to join route segments on an approach. Fly−by waypoints connect the two segments by allowing the aircraft to turn prior to the current waypoint in order to roll out on course to the next waypoint. This is known as turn anticipation and is compensated for in the airspace and terrain clearances. The MAWP and the missed approach holding waypoint (MAHWP) are normally the only two waypoints on the approach that are not fly−by waypoints. Fly−over waypoints are used when the aircraft must overfly the waypoint prior to starting a turn to the new course. The symbol for a fly-over waypoint is a circled waypoint. Some waypoints may have dual use; for example, as a fly−by waypoint when used as an IF for a NoPT route and as a fly-over waypoint when the same waypoint is also used as an IAF/IF hold-in-lieu of PT. When this occurs, the less restrictive (fly-by) symbology will be charted. Overlay approach charts and some early stand−alone GPS approach charts may not reflect this convention
    • Unnamed waypoints for each airport will be uniquely identified in the database. Although the identifier may be used at different airports (for example, RW36 will be the identifier at each airport with a runway 36), the actual point, at each airport, is defined by a specific latitude/longitude coordinate
    • The runway threshold waypoint, normally the MAWP, may have a five−letter identifier (for example, SNEEZ) or be coded as RW## (for example, RW36, RW36L). MAWPs located at the runway threshold are being changed to the RW## identifier, while MAWPs not located at the threshold will have a five−letter identifier. This may cause the approach chart to differ from the aircraft database until all changes are complete. The runway threshold waypoint is also used as the center of the Minimum Safe Altitude (MSA) on most GPS approaches
  • Position Orientation:
    • Pilots should pay particular attention to position orientation while using GPS. Distance and track information are provided to the next active waypoint, not to a fixed navigation aid. Receivers may sequence when the pilot is not flying along an active route, such as when being vectored or deviating for weather, due to the proximity to another waypoint in the route. This can be prevented by placing the receiver in the non-sequencing mode. When the receiver is in the non-sequencing mode, bearing and distance are provided to the selected waypoint and the receiver will not sequence to the next waypoint in the route until placed back in the auto sequence mode or the pilot selects a different waypoint. The pilot may have to compute the ATD to stepdown fixes and other points on overlay approaches, due to the receiver showing ATD to the next waypoint rather than DME to the VOR or ILS ground station
  • Impact of Magnetic Variation on PBN Systems:
    • Differences may exist between PBN systems and the charted magnetic courses on ground−based NAVAID instrument flight procedures (IFP), enroute charts, approach charts, and Standard Instrument Departure/Standard Terminal Arrival (SID/STAR) charts. These differences are due to the magnetic variance used to calculate the magnetic course. Every leg of an instrument procedure is first computed along a desired ground track with reference to true north. A magnetic variation correction is then applied to the true course in order to calculate a magnetic course for publication. The type of procedure will determine what magnetic variation value is added to the true course. A ground−based NAVAID IFP applies the facility magnetic variation of record to the true course to get the charted magnetic course. Magnetic courses on PBN procedures are calculated two different ways. SID/STAR procedures use the airport magnetic variation of record, while IFR enroute charts use magnetic reference bearing. PBN systems make a correction to true north by adding a magnetic variation calculated with an algorithm based on aircraft position, or by adding the magnetic variation coded in their navigational database. This may result in the PBN system and the procedure designer using a different magnetic variation, which causes the magnetic course displayed by the PBN system and the magnetic course charted on the IFP plate to be different. It is important to understand, however, that PBN systems, (with the exception of VOR/DME RNAV equipment) navigate by reference to true north and display magnetic course only for pilot reference. As such, a properly functioning PBN system, containing a current and accurate navigational database, should fly the correct ground track for any loaded instrument procedure, despite differences in displayed magnetic course that may be attributed to magnetic variation application. Should significant differences between the approach chart and the PBN system avionics’ application of the navigation database arise, the published approach chart, supplemented by NOTAMs, holds precedence
    • The course into a waypoint may not always be 180 degrees different from the course leaving the previous waypoint, due to the PBN system avionics’ computation of geodesic paths, distance between waypoints, and differences in magnetic variation application. Variations in distances may also occur since PBN system distance−to−waypoint values are ATDs computed to the next waypoint and the DME values published on underlying procedures are slant−range distances measured to the station. This difference increases with aircraft altitude and proximity to the NAVAID

GPS Familiarization:

  • Pilots should practice GPS approaches in visual meteorological conditions (VMC) until thoroughly proficient with all aspects of their equipment (receiver and installation) prior to attempting flight in instrument meteorological conditions (IMC). Pilots should be proficient in the following areas:
    • Using the receiver autonomous integrity monitoring (RAIM) prediction function;
    • Inserting a DP into the flight plan, including setting terminal CDI sensitivity, if required, and the conditions under which terminal RAIM is available for departure;
    • Programming the destination airport;
    • Programming and flying the approaches (especially procedure turns and arcs);
    • Changing to another approach after selecting an approach;
    • Programming and flying “direct” missed approaches;
    • Programming and flying “routed” missed approaches;
    • Entering, flying, and exiting holding patterns, particularly on approaches with a second waypoint in the holding pattern;
    • Programming and flying a “route” from a holding pattern;
    • Programming and flying an approach with radar vectors to the intermediate segment;
    • Indication of the actions required for RAIM failure both before and after the FAWP; and
    • Programming a radial and distance from a VOR (often used in departure instructions)

Missed Approach:

  • A GPS missed approach requires pilot action to sequence the receiver past the MAWP to the missed approach portion of the procedure. The pilot must be thoroughly familiar with the activation procedure for the particular GPS receiver installed in the aircraft and must initiate appropriate action after the MAWP. Activating the missed approach prior to the MAWP will cause CDI sensitivity to immediately change to terminal (±1NM) sensitivity and the receiver will continue to navigate to the MAWP. The receiver will not sequence past the MAWP. Turns should not begin prior to the MAWP. If the missed approach is not activated, the GPS receiver will display an extension of the inbound final approach course and the ATD will increase from the MAWP until it is manually sequenced after crossing the MAWP
  • Missed approach routings in which the first track is via a course rather than direct to the next waypoint require additional action by the pilot to set the course. Being familiar with all of the inputs required is especially critical during this phase of flight

System Availability and Reliability:

  • The operational status of GNSS operations depends upon the type of equipment being used. For GPS−only equipment TSO−C129a, the operational status of non-precision approach capability for flight planning purposes is provided through a prediction program that is embedded in the receiver or provided separately

Special Category I Differential GPS (SCAT-I DGPS):

  • The SCAT-I DGPS is designed to provide approach guidance by broadcasting differential correction to GPS
  • SCAT-I DGPS procedures require aircraft equipment and pilot training
  • Ground equipment consists of GPS receivers and a VHF digital radio transmitter
    • The SCAT-I DGPS detects the position of GPS satellites relative to GPS receiver equipment and broadcasts differential corrections over the VHF digital radio
  • Category I Ground Based Augmentation System (GBAS) will displace SCAT-I DGPS as the public use service

Errors:

  • VHF "harmonic interference"
  • Atomic clock inaccuracies
  • Receiver equipment characteristics
  • Reflection from hard objects
  • Ionospheric and tropospheric delays

Conclusion:

  • Operational Use of GPS. U.S. civil operators may use approved GPS equipment in oceanic airspace, certain remote areas, the National Airspace System and other States as authorized (please consult the applicable Aeronautical Information Publication)
    • Equipage other than GPS may be required for the desired operation
    • GPS navigation is used for both Visual Flight Rules (VFR) and Instrument Flight Rules (IFR) operations
  • Although GPS has provided many benefits to the VFR pilot, care must be exercised to ensure that system capabilities are not exceeded. VFR pilots should integrate GPS navigation with electronic navigation (when possible), as well as pilotage and dead reckoning
    • Most receivers are not intuitive. The pilot must learn the various keystrokes, knob functions, and displays that are used in the operation of the receiver. Some manufacturers provide computer-based tutorials or simulations of their receivers that pilots can use to become familiar with operating the equipment

References:
