Magnetism Overview:
The Earth is a huge magnet with lines of flux which make its magnetic field
These lines extend from the poles around the Earth [Figure 1]
Characteristics:
Any magnet that is free to rotate (such as an aircraft's magnetic compass) will align with the poles
A magnet, typically made of iron, attracts and holds lines of flux
Magnets have a north and a South Pole
Opposite poles attract, while similar poles repel
Magnetic Compass Construction:
A compass is a simple magnetic bar suspended in fluid
The float and card assembly has a hardened steel pivot in its center that rides inside a special, spring-loaded, hard-glass jewel cup
The magnets align with the Earth's magnetic field, and the pilot reads the direction on the scale opposite the lubber line
When the pilot is flying North as the compass shows, East is to the pilot's right, but on the card "33", which represents 330° (West of North), is to the right of North
The reason for this apparent backward graduation is that the card remains stationary, and the compass housing and the pilot turn around it, always viewing the card from its backside
A compensator assembly mounted on the top or bottom of the compass allows an aviation maintenance technician (AMT) to create a magnetic field inside the compass housing that cancels the influence of local outside magnetic fields
The compensator corrects for deviation error
The compensator assembly has two shafts whose ends have screwdriver slots accessible from the front of the compass
Each shaft rotates one or two small compensating magnets
The end of one shaft is marked E-W, and its magnets affect the compass when the aircraft points East or West
The other shaft is marked N-S, and its magnets affect the compass when the aircraft points North or South
An aircraft magnetic compass has two small magnets attached to a metal float sealed inside a bowl of clear compass fluid
The compass housing is full of compass fluid, similar to kerosene, to avoid freezing at lower temperatures/higher altitudes
The buoyancy of the float takes weight off the pivot, and the fluid damps the oscillation of the float and card
This jewel-and-pivot type mounting allows the float the freedom to rotate and tilt up to approximately 18° angle of bank 45° pitch up/down
At steeper bank angles, the compass indications are erratic and unpredictable
The rear of the compass case is sealed with a flexible diaphragm or with a metal bellow in some compasses to prevent damage or leakage when the fluid expands and contracts with temperature changes
The magnetic compass is a reliable, self-contained unit requiring no external power source
It is extremely useful as a standby or emergency instrument
A graduated scale, called a card, is wrapped around the float and viewed through a glass window with a lubber line across it
The card is marked with letters representing the cardinal directions, North, East, South, and West, and a number for each 30° between these letters
The final "0" is omitted from these directions; for example, 3 = 30°, 6 = 60°, and 33 = 330°
There are long and short graduation marks between the letters and numbers, with each long mark representing 10° and each short mark representing 5°
Magnetic Compass Errors:
The magnetic compass is the simplest instrument in the panel, but it is subject to several errors to consider
The acronym "VD-MONA" helps pilots remember compass errors:
Latitude and longitude are based on "true" directions meaning they provide a constant horizontal and vertical plane with which to reference on maps and charts [Figure 2]
The magnetic pole to which the magnetic compass points is not collocated with the geographic "true" North pole but is some 1,300 miles away; directions measured from the magnetic poles are called magnetic directions
In aerial navigation, the difference between true and magnetic directions is called variation
This same angular difference in surveying and land navigation is called declination

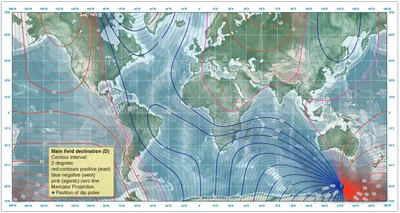

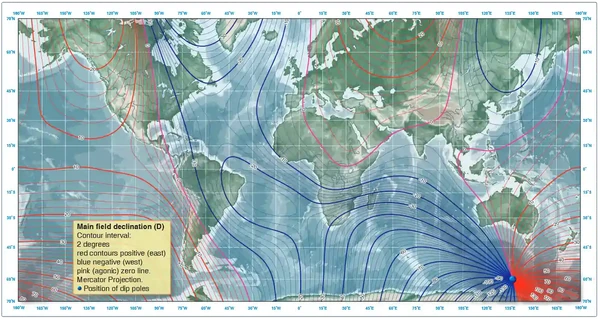

An "isogonic" line connects points of equal variation on a map
The amount of variation depends on your location relative to the poles
Variation in equatorial regions will be less dramatic, as isogonic lines are farther from each other
Conversely, at extreme northern and southern regions, isogonic lines are more pronounced as lines are closer together
The Agonic Line:
The line that passes near Des Moines, Iowa & Little Rock, Arkansas has a variation of 0°, making it the agonic line
Right of this line, the magnetic pole is to the West of the geographic pole, and a correction must be applied to a compass indication to get a true direction
Flying in the Washington, D.C. area, for example, the variation is 10° West
If the pilot wants to fly a true course of South (180°), the variation must be added to this resulting in a magnetic course to fly of 190°
Left of this line, the magnetic pole is to the East of the geographic pole, and a correction must be applied to a compass indication to get a true direction
Flying in the Los Angeles, California area, the variation is 14° East
To fly a true course of 180° there, the pilot would have to subtract the variation and fly a magnetic course of 166°
East/West can be tricky to remember given they would otherwise be considered opposite; however, if you think of looking at the world from the pole (vice your location toward the pole), then it makes sense
The variation error does not change with the heading of the aircraft; it is the same anywhere along the isogonic line
Isogonic lines are depicted on sectional charts with a dashed magenta line and the number associated
Used to convert true course to magnetic course
Correcting For Variation:
True course (170°) ± variation (+10°) = magnetic course (180°)
The magnetic course (180°) is flown if there is no deviation error to be applied
Variation Memory Aids:
West is best (+), East is least (-), or;
Variation East, magnetic track least (-) while variation west, magnetic track best (+)
Deviation:
Local magnetic fields in an aircraft caused by electrical current flowing in the structure, in nearby wiring, or any magnetized part of the structure cause a compass error called deviation
Deviation manifests itself differently between aircraft and depending on heading, however, but it is not affected by the geographic location
Deviation error is minimized when a pilot or Aviation Maintenance Technition (AMT) performs the maintenance task known as "swinging the compass"
Most airports have a compass rose, which is a series of lines marked out on a taxiway or ramp at some location where there is no magnetic interference
Lines, oriented to magnetic North, are painted every 30°
The pilot or AMT aligns the aircraft on each magnetic heading and adjusts the compensating magnets to minimize the difference between the compass indication and the actual magnetic heading of the aircraft

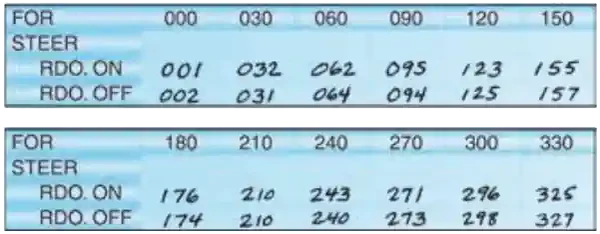

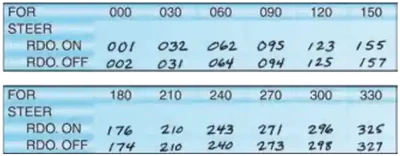

Any error that remains is recorded on a compass correction card and placed in a card-holder near the compass [Figure 3]
If the pilot wants to fly a magnetic heading of 120° and the aircraft is operating with radios on, the pilot should fly a compass heading of 123°
The corrections for variation and deviation must be applied in the correct sequence and is shown below, starting from the true course desired
Error due to magnetic interference with metal components in the aircraft as well as magnetic fields from the aircraft's electrical equipment
Compensating magnets inside the compass casing can help reduce this error but not eliminate it
Correcting For Deviation:
Magnetic Course ± Deviation = Compass Course
Assume a magnetic course of 180° as above, ± Deviation (-4° (180-176 = -4, assuming RDO ON), from correction card) = Compass Course (176°)
Note that intermediate magnetic courses between those listed on the compass card need to be interpolated. Therefore, to steer a true course of 180°, the pilot would follow a compass course of 188°
To find the true course when the compass course is known:
The dip-correction weight causes the end of the float and card marked N (the south-seeking end) to be heavier than the opposite end
When the aircraft is flying at a constant speed on a heading of East or West, the float and card is level

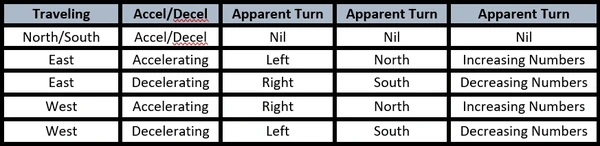

When the aircraft accelerates on a heading of East/West, inertia causes the weight to lag, and the card rotates toward North [Figure 5]
When the aircraft decelerates on a heading of East/West, inertia causes the weight to move ahead, and the card rotates toward South [Figure 5]
The airspeed changes that are needed to make this noticeable are infrequent
As soon as the speed of the aircraft stabilizes, the card swings back to its East indication
Acceleration/Deceleration Memory Aids:
ANDS:
Accelerate North
Decelerate South
SAND:
South Accelerate
North Decelerate
Oscillation Error:
Fluid fills the compass body, which provides damping, thereby decreasing unwanted oscillations due to turbulence of the magnet and float
Fluid should therefore fill the compass, and no air bubbles or compass fluid discoloration should be present
The clear compass face (window) has on it a vertical line called a "LUBBER LINE" so that the pilot can use it as a datum to set the required heading

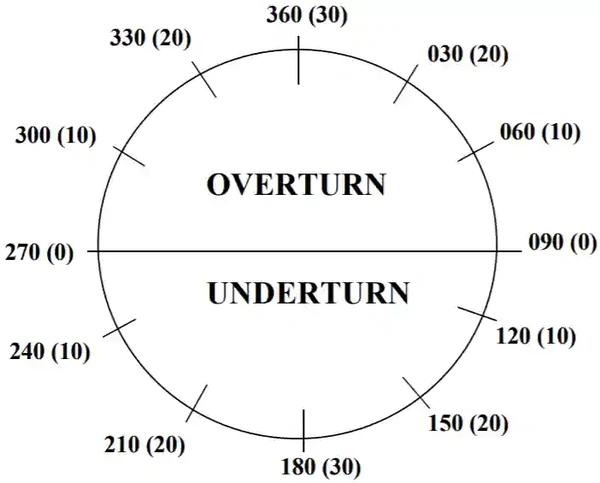

Oscillation is a combination of all of the other errors, and it results in the compass card swinging back and forth around the heading flown
Turbulence causes the compass to "bounce" or move in the container
When setting the gyroscopic heading indicator to agree with the magnetic compass, use the average indication between the swings
The Vertical Card Magnetic Compass:
The floating magnet type of compass not only has all the errors just described but also lends itself to confused reading
It is easy to begin a turn in the wrong direction because its card appears backward
East is on what the pilot would expect to be the West side
The vertical card magnetic compass eliminates some of the errors and confusion
The dial of this compass is graduated with letters representing the cardinal directions, numbers every 30° and marks every 5°
A set of gears rotates the dial from the shaft-mounted magnet, and the nose of the symbolic airplane on the instrument glass represents the lubber line for reading the heading of the aircraft from the dial
Eddy currents induced into an aluminum-damping cup damp oscillation of the magnet
Flux Gate Compass System:
As mentioned earlier, the lines of flux in the Earth's magnetic field have two basic characteristics: a magnet aligns with these lines of flux, and an electrical current is induced or generated in any wire crossed by them
The flux-gate compass that drives slaved gyros uses the characteristic of current induction
The flux valve is a small, segmented ring made of soft iron that readily accepts lines of magnetic flux
An electrical coil is wound around each of the three legs to accept the current induced in this ring by the Earth's magnetic field
A coil wound around the iron spacer in the center of the frame has 400-Hz alternating current (A.C.) flowing through it
During the times when this current reaches its peak, twice during each cycle, so much magnetism is produced by this coil that the frame cannot accept the lines of flux from the Earth's field
But as the current reverses between the peaks, it demagnetizes the frame so it can accept the flux from the Earth's field
As this flux cuts across the windings in the three coils, it causes current to flow in them
These three coils connect in such a way that the current flowing in them changes as the aircraft heading changes
The three coils connect to three similar but smaller coils in a synchro inside the instrument case
The synchro rotates the dial of a Radio Magnetic Indicator (RMI) or a horizontal situation indicator (HSI)
Made of soft iron that readily accepts a line of flux
A coil wound around the iron spacer has 400-Hz AC flowing through it
As current peaks, twice during each cycle, there is so much magnetism that the frame cannot accept the lines of flux, but as the current reverses, it demagnetizes to accept more
The three coils connect to three similar but smaller coils in a synchro inside case
The synchro rotated the dial of a Radio Magnetic Indicator (RMI or an HSI)
Regulations:
Magnetic direction indicators (of which a magnetic compass satisfies) are required by Federal Aviation Regulation 91.205 to be installed and operational on an aircraft for it to be considered airworthy
Magnetic Compass Preflight Actions:
Full of fluid; card in place and indicating a correct heading
Compass card installed (does not need to be filled out)
Check the alignment of the direction indicator to comparing to the magnetic compass (indicator) once electrical power is applied and the gyros have had a chance to spin up
Compass Swing:
A compass swing must be performed whenever any ferrous component of the system (i.e. flux valve compensator, or Standby Compass) is installed, removed, repaired, or a new compass is installed
The magnetic compass can be checked for accuracy by using a compass rose located on an airport
Finding a Compass Rose:

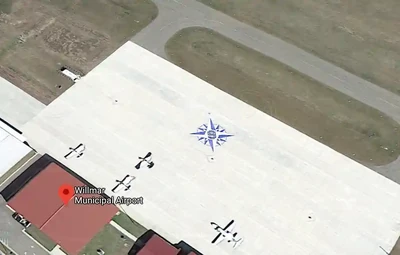

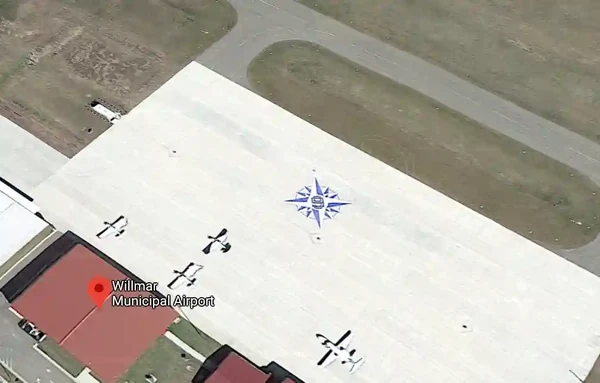

While there is no official listings of airports with compass roses, they can be found on many airports [Figure 6]
Painted surfaces are of course static, and may be invalidated with the gradual shift in magnetic poles
The compass swing is normally effected by placing the aircraft on various magnetic headings and comparing the deviations with those on the deviation cards
Refer to CFR 14 23.1327, 23.1547, and the equipment or aircraft manufacturer's manual
A compass swing must be performed when:
The accuracy of the compass is suspected
After any cockpit modification or major replacement involving ferrous metal
Whenever a compass has been subjected to a shock; for example, after a hard landing or turbulence
After aircraft has passed through a severe electrical storm
After lighting strike
Whenever a change is made to the electrical system
Whenever a change of cargo is likely to affect the compass
When an aircraft operation is changed to a different geographic location with a major change in magnetic deviation (e.g., from Miami, Florida to Fairbanks, Alaska.)
After aircraft has been parked on one heading for over a year
The magnetic compass remains a time tested reliable instrument, although as avionics evolve, the magnetic compass is being seen increasingly as a standby or back-up instrument
