Distance Measuring Equipment

Introduction to Distance Measuring Equipment

Distance Measuring Equipment (DME) is a measuring device using ground and air components to determine the slant range of an aircraft from a point.
DME equipment functions by using paired radio signals between the aircraft and ground stations.
Test your understanding of Distance Measuring Equipment by completing the knowledge quiz, applying your knowledge in the interactive scenario, comparing your performance against the applicable Airman Certification Standards, and concluding with the topic summary to reinforce the key concepts before moving on to the next lesson.

On This Page

Distance Measuring Equipment

Distance Measuring Equipment Key Highlights

Distance Measuring Equipment (DME) provides pilots with slant-range distance information from a ground-based navigation station.
DME systems operate by measuring the time required for radio signals to travel between aircraft equipment and ground stations.
DME commonly works with VOR, ILS, and TACAN navigation facilities to improve positional awareness and route navigation.
Distance information is typically displayed in nautical miles along with groundspeed and estimated time-to-station calculations.
Slant-range distance reflects the direct distance between the aircraft and the station rather than horizontal ground distance.
DME accuracy improves as aircraft altitude decreases relative to the station during terminal operations.
Pilots use DME information for instrument approaches, holding procedures, route fixes, and en route navigation.
Modern RNAV and GPS systems often supplement or replace traditional DME navigation capabilities.
Navigation accuracy depends on proper equipment operation, station identification, and signal reception quality.
Understanding DME operation improves navigation precision, situational awareness, and overall flight safety.

Distance Measuring Equipment

Distance Measuring Equipment Function

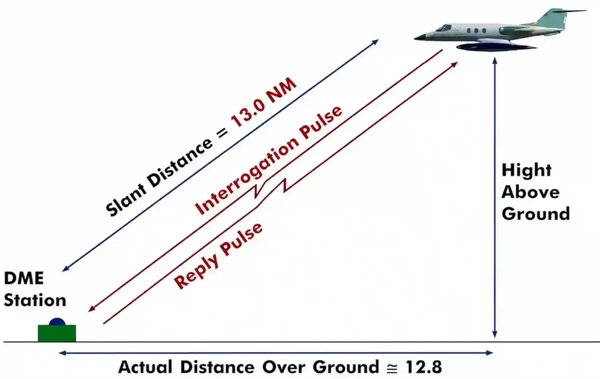

DME Slant Range Distance
Paired pulses at specific spacing (interrogation) are sent to a ground station from the aircraft via the antenna. []
The ground station (transponder) sends the same pulses back to the aircraft at a different frequency.
- The airborne equipment converts the signal's round-trip travel time into slant-range distance, displayed in nautical miles.
Distance is measured in slant range (not horizontal range!) but some units can correct this.
Slant range error minimized at lower altitudes.
DME operates on the line-of-sight principle.
Reliable up to 199 nautical miles (NM) accuracy of better than 1/2 mile or 3% of the distance, whichever is greater (more accurate).
Due to the limited number of available frequencies, assignment of paired frequencies is required for certain military non-collocated VOR (Very High Frequency Omnidirectional Range) and TACAN facilities which serve the same area but which may be separated by distances up to a few miles.
DME is not available on a VOR and would require a separate receiver.
DME paired with a VOR constitutes a VOR/DME.
Can be identified every 30 seconds or about every 3rd to 4th VOR identification.
When VOR navigation equipment is required for IFR (Instrument Flight Rules) flight at or above FL240, the aircraft must have approved distance measuring equipment (DME) or a suitable RNAV (Area Navigation) system, as required by 14 CFR 91.205(e).
- If DME fails above FL (Flight Level) 240, continue to next airport where repairs or equipment replacement can be done (must still report as per AIM 5-3-3).
GS values, if displayed, are only accurate when flying directly to / from the station
Service volume applies:
- Published airways may use NAVAIDs (Navigational Aids) beyond their Standard Service Volume (SSV) when an Extended Service Volume (ESV) is approved; the FAA verifies signal strength, course quality, and freedom from interference before publishing the route.
Frequency:
- 960 megahertz (MHz) to 1215 MHz in accordance with ICAO (International Civil Aviation Organization) Annex 10.
DME Slant Range Distance

Distance Measuring Equipment

Frequency Pairing

VOR/DME, VORTAC (Very High Frequency Omnidirectional Range/Tactical Air Navigation), Instrument Landing System (ILS)/DME, and localizer (LOC)/DME navigation facilities established by the FAA provide course and distance information from collocated components under a frequency pairing plan.
Aircraft receiving equipment which provides for automatic DME selection assures reception of azimuth and distance information from a common source when designated VOR/DME, VORTAC, ILS/DME, and LOC/DME are selected.
- Due to the limited number of available frequencies, assignment of paired frequencies is required for certain military non-collocated VOR and TACAN facilities which serve the same area but which may be separated by distances up to a few miles.

Distance Measuring Equipment

Identification of Distance Measuring Equipment Stations

VOR/DME, VORTAC, ILS/DME, and LOC/DME facilities are identified by synchronized identifications which are transmitted on a time share basis.
The VOR or localizer portion of the facility is identified by a coded tone modulated at 1020 Hz or a combination of code and voice.
The TACAN or DME is identified by a coded tone modulated at 1350 Hz.
The DME or TACAN coded identification is transmitted one time for each three or four times that the VOR or localizer coded identification is transmitted.
When either the VOR or the DME is inoperative, it is important to recognize which identifier is retained for the operative facility.
A single coded identification with a repetition interval of approximately 30 seconds indicates that the DME or TACAN (Tactical Air Navigation) component, as applicable, is operative. It does not by itself confirm that the VOR component is operative.
Aircraft equipment which provides for automatic DME selection assures reception of azimuth and distance information from a common source when designated VOR/DME, VORTAC and ILS/DME navigation facilities are selected.
Pilots are cautioned to disregard any distance displays from automatically selected DME equipment when VOR or ILS facilities, which do not have the DME feature installed, are being used for position determination.

Distance Measuring Equipment

Slaved Compass Systems

Aircraft equipped with slaved compass systems may be susceptible to heading errors caused by exposure to magnetic field disturbances (flux fields) found in materials that are commonly located on the surface or buried under taxiways and ramps.
These materials generate a magnetic flux field that can be sensed by the aircraft's compass system flux detector or "gate," which can cause the aircraft's system to align with the material's magnetic field rather than the earth's natural magnetic field.
The system's erroneous heading may not self-correct.
Prior to take off pilots should be aware that a heading misalignment may have occurred during taxi.
Pilots are encouraged to follow the manufacturer's or other appropriate procedures to correct possible heading misalignment before take off is commenced.

Distance Measuring Equipment

Distance Measuring Equipment Interactive Scenario

Interactive Scenario

Loading scenario details...

Loading...

Decision 1

0%

Scenario Complete

Distance Measuring Equipment

Distance Measuring Equipment Knowledge Check

Choose the knowledge check that matches your current training for Distance Measuring Equipment.

Private Pilot

PPL knowledge check

Core Knowledge Review

Review foundational knowledge, key concepts, and practical considerations. Topic: Distance Measuring Equipment.

Immediate feedback
Answer explanations
Account progress tracking

Why Take a Quiz?

Quizzes reinforce key concepts, identify knowledge gaps, and build confidence for real-world decisions. Quiz material is representative of the information provided here and is not based on or sourced from the Federal Aviation Administration test bank.

Distance Measuring Equipment

Distance Measuring Equipment-Related Airman Certification Standards

Private Pilot (Airplane) Radio Communications, Navigation Systems/Facilities, and Radar Services Airman Certification Standards

Objective: To determine that the applicant exhibits satisfactory knowledge, risk management, and skills associated with radio communications, navigation systems/facilities, and radar services available for use during flight solely by reference to instruments.
References: FAA-H-8083-2 (Risk Management Handbook), FAA-H-8083-3 (Airplane Flying Handbook), FAA-H-8083-15, FAA-H-8083-25 (Pilot Handbook of Aeronautical Knowledge).
Private Pilot (Airplane) Radio Communications, Navigation Systems/Facilities, and Radar Services Lesson Plan.

Knowledge 3 ACS Elements

PA.VIII.F.K1:
Operating communications equipment to include identifying and selecting radio frequencies, requesting and following air traffic control (ATC) instructions.
PA.VIII.F.K2:
Operating navigation equipment to include functions and displays, and following bearings, radials, or courses.
PA.VIII.F.K3:
Air traffic control facilities and services.

Risk Management 2 ACS Elements

Skills 3 ACS Elements

PA.VIII.F.S1:
Maintain airplane control while selecting proper communications frequencies, identifying the appropriate facility, and managing navigation equipment.
PA.VIII.F.S2:
Comply with ATC instructions.
PA.VIII.F.S3:
[Archived].

Private Pilot (Airplane) Navigation Systems and Radar Services Airman Certification Standards

Objective: To determine whether the applicant exhibits satisfactory knowledge, risk management, and skills associated with navigation systems and radar services.
References: AC 91-78; AIM; FAA-H-8083-2 (Risk Management Handbook), FAA-H-8083-3 (Airplane Flying Handbook), FAA-H-8083-25 (Pilot Handbook of Aeronautical Knowledge).
Private Pilot (Airplane) Navigation Systems and Radar Services Lesson Plan.

Knowledge 4 ACS Elements

PA.VI.B.K1:
Ground-based navigation (identification, orientation, course determination, equipment, tests, regulations, interference, appropriate use of navigation data, and signal integrity).
PA.VI.B.K2:
Satellite-based navigation (e.g., equipment, regulations, authorized use of databases, and Receiver Autonomous Integrity Monitoring (RAIM)).
PA.VI.B.K3:
Radar assistance to visual flight rules (VFR) aircraft (e.g., operations, equipment, available services, traffic advisories).
PA.VI.B.K4:
Transponder (Mode(s) A, C, and S) and Automatic Dependent Surveillance-Broadcast (ADS-B).

Risk Management 5 ACS Elements

PA.VI.B.R1:
Management of automated navigation and autoflight systems.
PA.VI.B.R2:
Distractions, task prioritization, loss of situational awareness, or disorientation.
PA.VI.B.R3:
Limitations of the navigation system in use.
PA.VI.B.R4:
Loss of a navigation signal.
PA.VI.B.R5:
Use of an electronic flight bag (EFB), if used.

Skills 7 ACS Elements

PA.VI.B.S1:
Use an airborne electronic navigation system.
PA.VI.B.S2:
Determine the airplane's position using the navigation system.
PA.VI.B.S3:
Intercept and track a given course, radial, or bearing.
PA.VI.B.S4:
Recognize and describe the indication of station or waypoint passage.
PA.VI.B.S5:
Recognize signal loss or interference and take appropriate action, if applicable.
PA.VI.B.S6:
Use proper communication procedures when utilizing radar services.
PA.VI.B.S7:
Maintain the selected altitude ±200 feet and heading ±15°.

Commercial Pilot (Airplane) Navigation Systems and Radar Services Airman Certification Standards

Objective: To determine whether the applicant exhibits satisfactory knowledge, risk management, and skills associated with navigation systems and radar services.
References: AC 91-78; AIM; FAA-H-8083-2 (Risk Management Handbook), FAA-H-8083-3 (Airplane Flying Handbook), FAA-H-8083-25 (Pilot Handbook of Aeronautical Knowledge).
Commercial Pilot (Airplane) Navigation Systems and Radar Services Lesson Plan.

Knowledge 4 ACS Elements

CA.VI.B.K1:
Ground-based navigation (identification, orientation, course determination, equipment, tests, regulations, interference, appropriate use of navigation data, and signal integrity).
CA.VI.B.K2:
Satellite-based navigation (e.g., equipment, regulations, authorized use of databases, and Receiver Autonomous Integrity Monitoring (RAIM)).
CA.VI.B.K3:
Radar assistance to visual flight rules (VFR) aircraft (e.g., operations, equipment, available services, traffic advisories).
CA.VI.B.K4:
Transponder (Mode(s) A, C, and S) and Automatic Dependent Surveillance-Broadcast (ADS-B).

Risk Management 5 ACS Elements

CA.VI.B.R1:
Management of automated navigation and autoflight systems.
CA.VI.B.R2:
Distractions, task prioritization, loss of situational awareness, or disorientation.
CA.VI.B.R3:
Limitations of the navigation system in use.
CA.VI.B.R4:
Loss of a navigation signal.
CA.VI.B.R5:
Use of an electronic flight bag (EFB), if used.

Skills 7 ACS Elements

CA.VI.B.S1:
Use an airborne electronic navigation system.
CA.VI.B.S2:
Determine the airplane's position using the navigation system.
CA.VI.B.S3:
Intercept and track a given course, radial, or bearing.
CA.VI.B.S4:
Recognize and describe the indication of station or waypoint passage.
CA.VI.B.S5:
Recognize signal loss or interference and take appropriate action, if applicable.
CA.VI.B.S6:
Use proper communication procedures when utilizing radar services.
CA.VI.B.S7:
Maintain the selected altitude ±100 feet and heading ±10°.

Private Pilot (Helicopter) Navigation Systems and Radar Services Airman Certification Standards

Area of Operation VII: Navigation.
Task B: Navigation Systems and Radar Services.
Objective: To determine the applicant exhibits satisfactory knowledge, risk management, and skills associated with navigation systems and radar services.
Note: The evaluator should reference the manufacturer's equipment supplement(s) as necessary for appropriate limitations, procedures, etc.
References: AC 91-78; AIM; FAA-H-8083-2, FAA-H-8083-21, FAA-H-8083-25
Private Pilot (Helicopter) Navigation Systems and Radar Services Lesson Plan.

Knowledge 4 ACS Elements

PH.VII.B.K1:
Ground-based navigation (identification, orientation, course determination, equipment, tests, regulations, interference, appropriate use of navigation data, and signal integrity).
PH.VII.B.K2:
Satellite-based navigation (e.g., equipment, regulations, authorized use of databases, and Receiver Autonomous Integrity Monitoring (RAIM)).
PH.VII.B.K3:
Radar assistance to visual flight rules (VFR) aircraft (e.g., operations, equipment, available services, traffic advisories).
PH.VII.B.K4:
Transponder (Mode(s) A, C, and S) and Automatic Dependent Surveillance-Broadcast (ADS-B).

Risk Management 5 ACS Elements

PH.VII.B.R1:
Management of automated navigation and autoflight systems.
PH.VII.B.R2:
Distractions, task prioritization, loss of situational awareness, or disorientation.
PH.VII.B.R3:
Limitations of the navigation system in use.
PH.VII.B.R4:
Loss of a navigation signal.
PH.VII.B.R5:
Use of an electronic flight bag (EFB), if used.

Skills 7 ACS Elements

PH.VII.B.S1:
Use an airborne electronic navigation system.
PH.VII.B.S2:
Determine the aircraft's position using the navigation system.
PH.VII.B.S3:
Intercept and track a given course, radial, or bearing.
PH.VII.B.S4:
Recognize and describe the indication of station or waypoint passage.
PH.VII.B.S5:
Recognize loss of navigational signal and take appropriate action.
PH.VII.B.S6:
Use proper communication procedures when utilizing radar services.
PH.VII.B.S7:
Maintain the selected altitude, ±200 feet and headings, ±15°.

Instrument Rating Aircraft Flight Instruments and Navigation Equipment Airman Certification Standards

Objective: To determine whether the applicant exhibits satisfactory knowledge, risk management, and skills associated with managing instruments appropriate for an IFR flight.
References: 14 CFR part 91; AC 90-100, AC 90-105, AC 90-107, AC 91-78, AC 91.21-1; AIM; FAA-H-8083-2 (Risk Management Handbook), FAA-H-8083-3 (Airplane Flying Handbook), FAA-H-8083-15, and FAA-H-8083-25 (Pilot's Handbook of Aeronautical Knowledge).
Instrument Rating Aircraft Flight Instruments and Navigation Equipment Lesson Plan.

Knowledge 3 ACS Elements

IR.II.B.K1:
Operation of the aircraft's applicable flight instrument system(s), including:
- IR.II.B.K1a:
  Pitot-static instrument system and associated instruments.
- IR.II.B.K1b:
  Gyroscopic/electric/vacuum instrument system and associated instruments.
- IR.II.B.K1c:
  Electrical systems, electronic flight instrument displays [primary flight display (PFD), multifunction display (MFD)], transponder, and automatic dependent surveillance-broadcast (ADS-B).
- IR.II.B.K1d:
  Magnetic compass.
IR.II.B.K2:
Operation of the aircraft's applicable navigation system(s), including:
- IR.II.B.K2a:
  Very high frequency (VHF) Omnidirectional Range (VOR), distance measuring equipment (DME), instrument landing system (ILS), and marker beacon receiver/indicators.
- IR.II.B.K2b:
  Area navigation (RNAV), global positioning system (GPS), Wide Area Augmentation System (WAAS), flight management system (FMS), and autopilot.
IR.II.B.K3:
Use of an electronic flight bag (EFB), if used.

Risk Management 5 ACS Elements

IR.II.B.R1:
Monitoring and management of automated systems.
IR.II.B.R2:
Difference between approved and non-approved navigation devices.
IR.II.B.R3:
Modes of flight and navigation instruments, including failure conditions.
IR.II.B.R4:
Use of an electronic flight bag.
IR.II.B.R5:
Use of navigation databases.

Skills 2 ACS Elements

Sport Pilot (Helicopter) Navigation Systems and Radar Services Airman Certification Standards

Area of Operation VII: Navigation.
Task B: Navigation Systems and Radar Services.
Objective: To determine the applicant exhibits satisfactory knowledge, risk management, and skills associated with navigation systems and radar services.
References: AC 91-78; AIM; FAA-H-8083-2, FAA-H-8083-21, FAA-H-8083-25
Sport Pilot (Helicopter) Navigation Systems and Radar Services Lesson Plan.

Knowledge 4 ACS Elements

SH.VII.B.K1:
Ground-based navigation (identification, orientation, course determination, equipment, tests, regulations, interference, appropriate use of navigation data, and signal integrity).
SH.VII.B.K2:
Satellite-based navigation (e.g., equipment, regulations, authorized use of databases, and Receiver Autonomous Integrity Monitoring (RAIM)).
SH.VII.B.K3:
Radar assistance to visual flight rules (VFR) aircraft (e.g., operations, equipment, available services, traffic advisories).
SH.VII.B.K4:
Transponder (Mode(s) A, C, and S) and Automatic Dependent Surveillance-Broadcast (ADS-B).

Risk Management 5 ACS Elements

SH.VII.B.R1:
Management of automated navigation and autoflight systems.
SH.VII.B.R2:
Distractions, task prioritization, loss of situational awareness, or disorientation.
SH.VII.B.R3:
Limitations of the navigation system in use.
SH.VII.B.R4:
Loss of a navigation signal.
SH.VII.B.R5:
Use of an electronic flight bag (EFB), if used.

Skills 7 ACS Elements

SH.VII.B.S1:
Use an airborne electronic navigation system.
SH.VII.B.S2:
Determine the aircraft's position using the navigation system.
SH.VII.B.S3:
Intercept and track a given course, radial, or bearing.
SH.VII.B.S4:
Recognize and describe the indication of station or waypoint passage.
SH.VII.B.S5:
Recognize loss of navigational signal and take appropriate action.
SH.VII.B.S6:
Use proper communication procedures when utilizing radar services, as applicable.
SH.VII.B.S7:
Maintain the selected altitude, ±200 feet and headings, ±15°.

Distance Measuring Equipment

Distance Measuring Equipment Conclusion

DME stations are their own set of equipment, and are not necessarily part of the NAVAID, hence association with various other ground-based systems like VORs and localizers.
- DME is therefore not an indication the NAVAID it is tied to is in service.
Aircraft equipped with TACAN equipment will receive distance information from a VORTAC automatically, while aircraft equipped with VOR must have a separate DME airborne unit.
A suitable GPS-based RNAV system may substitute for DME, including an out-of-service DME, subject to the applicable operating requirements. Except for authorized GPS (Global Positioning System) overlay approaches with “or GPS” in the title, using RNAV guidance on a VOR, TACAN, or NDB (Nondirectional Beacon) final approach requires the underlying NAVAID to be operational and monitored for final-segment course alignment. Localizer-based courses, including back courses, require reference to raw localizer data. RNAV substitution does not authorize a procedure NOTAMed NA without exception.
Still looking for something? Continue searching:

Distance Measuring Equipment

Distance Measuring Equipment

Introduction to Distance Measuring Equipment

Distance Measuring Equipment Key Highlights

Distance Measuring Equipment Function

Frequency:

Frequency Pairing

Identification of Distance Measuring Equipment Stations

Slaved Compass Systems

Distance Measuring Equipment Interactive Scenario

Interactive Scenario

Scenario Complete

Distance Measuring Equipment Knowledge Check

Core Knowledge Review

Sport Pilot Knowledge

Advanced Application

Instrument Knowledge

Instructor Knowledge

Instrument Instructor Knowledge

Why Take a Quiz?

Private Pilot (Airplane) Radio Communications, Navigation Systems/Facilities, and Radar Services Airman Certification Standards

Private Pilot (Airplane) Navigation Systems and Radar Services Airman Certification Standards

Commercial Pilot (Airplane) Navigation Systems and Radar Services Airman Certification Standards

Private Pilot (Helicopter) Navigation Systems and Radar Services Airman Certification Standards

Instrument Rating Aircraft Flight Instruments and Navigation Equipment Airman Certification Standards

Sport Pilot (Helicopter) Navigation Systems and Radar Services Airman Certification Standards

Distance Measuring Equipment Conclusion

Distance Measuring Equipment References
