Charted Visual Flight Procedure

Charted Visual Flight procedures are established for environmental considerations, permitting the safety and efficiency of air traffic operations.

Charted Visual Flight Procedure

Introduction to Charted Visual Flight Procedure

  • A visual approach is an ATC authorization for an aircraft on an IFR flight plan to proceed visually and clear of clouds to the airport, simplifying terminal actions.
  • The Federal Aviation Administration publishes Charted Visual Flight Procedures (CVFPs) for environmental/noise considerations and/or when necessary for the safety and efficiency of air traffic operations.
    • Designed primarily for turbojet aircraft.
  • Located from various sources, these procedures outline what pilots should follow.
  • CVFPs are not instrument approaches and do not have a missed approach segment.
    • Do not confuse a Charted Visual Flight Procedure (CVFP) with an Area Navigation Visual Flight Procedure (RVFP). An RVFP is not an instrument approach procedure; it is a special, authorization-required visual procedure containing an RNAV route that must be retrieved by name from the aircraft’s Flight Management System (FMS) database and may not be constructed manually.
    • RVFPs do not provide prescribed Terminal Instrument Procedures (TERPS) obstacle protection. By accepting an RVFP clearance, the pilot accepts the requirements and responsibilities associated with a visual approach and remains responsible for clearance from terrain and obstacles.
    • Pilots must fly the published RVFP route unless otherwise cleared by Air Traffic Control (ATC) and must comply with charted mandatory altitudes and speeds.
    • Operators must train their pilots on RVFP phraseology, procedures, and requirements, including the procedure’s Attention All Users Page.
    • Request the RVFP on initial contact with the controlling ATC facility. Before receiving the clearance, advise ATC that the airport or preceding aircraft is in sight.
  • Unless indicating a class Bravo airspace floor, all depicted altitudes are for noise abatement purposes and recommended only.
    • Pilots may fly at altitudes other than those recommended if operational requirements dictate.
    • ATC may assign additional restrictions.
  • Reinforce your understanding of Charted Visual Flight Procedure by completing the knowledge quiz and interactive scenario, comparing your performance with the applicable Airman Certification Standards, and reviewing the topic summary before moving on.

Help Us Grow

Enjoy CFI Notebook? A one-time donation helps us create more high-quality lessons, quizzes, scenarios, graphics, and interactive tools.

One-Time Donation
Charted Visual Flight Procedure

Charted Visual Flight Procedure Key Highlights

  • Charted Visual Flight Procedures (CVFPs) provide published visual approach guidance into specific airports under visual meteorological conditions.
  • CVFPs are designed to reduce pilot and controller workload while improving traffic flow and situational awareness.
  • Published procedures typically include visual checkpoints, altitudes, headings, and noise abatement considerations.
  • Pilots must maintain visual reference with the airport environment and comply with all applicable visual flight requirements.
  • Air traffic control may assign a CVFP when weather conditions support visual operations and the pilot accepts the clearance.
  • CVFPs often incorporate terrain avoidance, obstacle clearance, and local traffic management considerations.
  • Pilots remain responsible for maintaining terrain and obstacle clearance during visual approach operations.
  • Navigation systems, moving maps, and published charts can assist pilots in identifying checkpoints and maintaining proper routing.
  • Reduced visibility, unfamiliar terrain, or excessive workload can increase operational risk during visual procedures.
  • Understanding CVFP operations improves visual approach efficiency, situational awareness, and airport arrival safety.
Charted Visual Flight Procedure

Charted Visual Approach Procedure Purpose

  • CVFPs are when the Air Traffic Control (ATC) facility manager, in coordination with airport management, determines that the procedure would mitigate aircraft noise or improve safety and efficiency.
  • The FAA develops a CVFP only after exhausting all PBN (Performance-Based Navigation) approach options.
Charted Visual Flight Procedure

Locating Charted Visual Approach Procedures

Charted Visual Flight Procedure

Charted Visual Approach Procedure Depiction

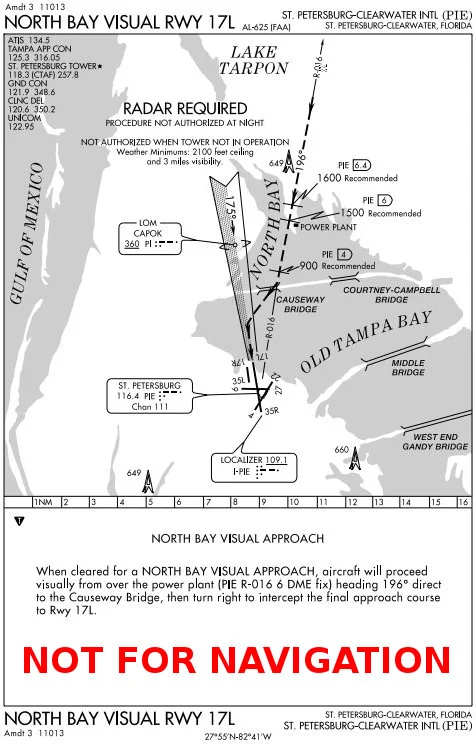

  • Charted Visual Flight Procedure (CVFP)
    North Bay Visual Runway 17L
  • Depict prominent landmarks, courses, and recommended altitudes to specific runways.
  • Most CVFP charts show NAVAID information for supplemental navigation guidance only.
  • CVFPs usually begin within 20 flying miles of the airport.
Charted Visual Flight Procedure

Charted Visual Approach Procedure Requirements

  • There is an operating control tower.
  • ATC will not issue clearances for CVFPs when the weather is less than the published minimum.
    • If ground visibility is not reported, the pilot may use flight visibility only where authorized by 14 CFR 91.155(d) or 91.157(c); this does not replace the published minimum for the CVFP.
    • Minimum vectoring altitudes influence published weather minimums, rather than recommended altitudes depicted on charts.
  • When using parallel or intersecting/converging runways, the criteria specified in JO 7110.65 (7-4-4), Approaches to Multiple Runways, are applied.
  • ATC will clear aircraft for a CVFP after the pilot reports sighting a charted landmark or a preceding aircraft.
    • If instructed to follow a preceding aircraft, pilots are responsible for maintaining a safe approach interval and wake turbulence separation.
  • When landmarks used for navigation are not visible at night, the approach will be annotated "procedure not authorized at night."
Charted Visual Flight Procedure

Charted Visual Approach Procedure Clearance

  • ATC: "[Callsign], cleared [Approach] approach."
  • Pilots should advise ATC if at any point they are unable to continue an approach or lose sight of a preceding aircraft.
    • Air Traffic Control handles missed approaches as go-arounds.
    • Have pre-planned climb-out options based on aircraft performance and terrain features.
  • When conducting visual approaches, pilots are encouraged to use other available navigational aids to assist in positive lateral and vertical alignment with the assigned runway.
Charted Visual Flight Procedure

Charted Visual Flight Procedure Knowledge Check

Choose the knowledge check that matches your current training for Charted Visual Flight Procedure.

Private Pilot quiz illustration Private Pilot

PPL knowledge check

Core Knowledge Review

Review foundational knowledge, key concepts, and practical considerations. Topic: Charted Visual Flight Procedure.

  • Immediate feedback
  • Answer explanations
  • Account progress tracking

Why Take a Quiz?

Quizzes reinforce key concepts, identify knowledge gaps, and build confidence for real-world decisions. Quiz material is representative of the information provided here and is not based on or sourced from the Federal Aviation Administration test bank.

Charted Visual Flight Procedure

Charted Visual Flight Procedure Interactive Scenario

Aircraft operations illustration for Charted Visual Flight Procedure.

The Hazy Harbor Visual

Manage an IFR arrival offered a charted visual route as haze, darkness, traffic, and ambiguous landmarks progressively challenge the visual basis for the clearance. Abbreviations used in this scenario: Global Positioning System (GPS); Area Navigation (RNAV).

15 DecisionsScenario-Based TrainingCharted Visual Flight ProcedureConsequence-BasedRetry and Debrief
Decision 1
0%

Scenario Complete

Charted Visual Flight Procedure

Charted Visual Flight Procedures Conclusion

  • To learn more about instrument procedures, be sure to check out the Instrument Procedures Handbook online or in paperback.
  • Pilots can visit the FAA's Instrument Flight Procedures Information Gateway to review and submit questions related to how and why certain procedures are as they are.
