Heading Indicator
Learn how aircraft heading indicators and directional gyros work, why they drift, how pilots set and check them, and how HSI, RMI, and AHRS systems differ.
Introduction to Heading Indicator
- The heading indicator (HI), also called a directional gyro, displays aircraft heading to aid navigation.
- Although reliable, a magnetic compass has many inherent errors, such as magnetic dip, that it has been supplemented with gyroscopic heading indicators.
- A flux gate system supplies a magnetic reference that can keep a slaved heading indicator aligned.
- Horizontal situation indicators (HSIs) combine heading with course-selection and course-deviation information.
- Remote indicating compasses and radio magnetic indicators (RMIs) bring magnetic heading and navigation-bearing information into the instrument scan.
- Understanding instrument errors helps pilots recognize drift and the effects of exceeding a mechanical gyro's limits.
- Heading indicator regulations identify when a gyroscopic direction indicator is required equipment.
- Heading indicator checks help pilots verify alignment and proper operation before relying on the indication.
- Modern installations may use an Inertial Reference Unit (IRU), Inertial Navigation System (INS), or Attitude Heading Reference System (AHRS) to supply heading and attitude information, with operating considerations specific to the installed equipment.
- As with any system or instrument, anomalies and malfunctions are possible, requiring detailed knowledge of the indicator and related systems.
- Reinforce your understanding of Heading Indicator by completing the knowledge quiz and interactive scenario, comparing your performance with the applicable Airman Certification Standards, and reviewing the topic summary before moving on.
Heading Indicator Key Highlights
- The heading indicator displays aircraft heading information and provides directional reference during flight operations.
- Traditional heading indicators use gyroscopic principles to maintain directional stability independent of magnetic compass errors.
- Heading indicators provide smoother and more stable directional information than magnetic compasses during maneuvering flight.
- Gyroscopic heading indicators gradually drift over time and must be periodically aligned with the magnetic compass.
- Modern electronic flight displays often provide heading information through attitude and heading reference systems (AHRS).
- Heading indicators assist pilots with navigation, instrument flying, traffic pattern operations, and air traffic control compliance.
- Gyroscopic precession, vacuum system failures, or electrical malfunctions can affect heading indicator accuracy.
- Pilots should cross-check heading information with the magnetic compass and other navigation instruments regularly.
- Accurate heading management is essential for maintaining course tracking, situational awareness, and airspace compliance.
- Understanding heading indicator operation improves navigation accuracy, instrument proficiency, and overall flight safety.
Heading Instruments Function and Design
- A gyroscopic direction indicator or equivalent is required for instrument flight rules (IFR) operations under 14 CFR 91.205(d)(9) for powered civil aircraft with standard U.S. airworthiness certificates.
- A magnetic compass alone does not satisfy the additional IFR requirement for a gyroscopic direction indicator or equivalent.

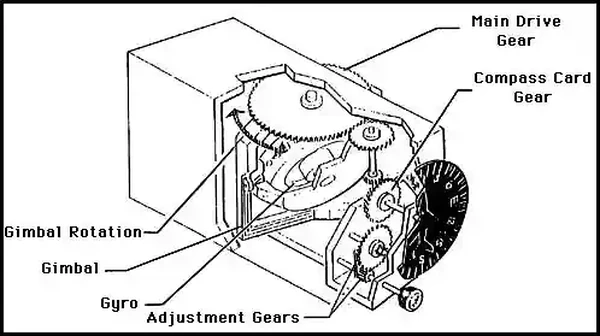

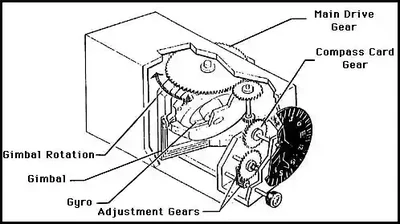

- A mechanical HI uses gyroscopic rigidity to maintain a directional reference as the aircraft turns. []
- The mechanism converts aircraft rotation about the vertical axis into movement of a compass card calibrated in degrees. []
- The gyro may be spun by an electric motor or by airflow from a vacuum or pressure system.
- When properly aligned, it indicates heading; heading changes can provide indirect evidence of a turn, but the instrument does not display bank angle.
- The heading of the aircraft is shown against the nose of the symbolic aircraft on the instrument glass, which serves as the lubber line to display directional (heading) information in reference to 360°.
- A mechanical heading indicator uses rigidity in space and may be powered electrically or by airflow from a vacuum system.
- A mechanical heading indicator senses rotation about the aircraft's vertical axis.
- A double gimbal (two-gimbal) system allows the gyro to maintain its reference while the aircraft pitches and rolls within the instrument's limits.
- An unslaved heading indicator is not north-seeking and must be manually aligned with the magnetic compass.
- Gyroscopic rigidity maintains the reference without the magnetic compass's turning and acceleration errors, although the heading indicator can drift.
- Older directional gyros use a drum-style compass card marked like a magnetic compass card.
- The gyro maintains its reference as the aircraft and instrument case turn, with the pilot viewing the card from behind.
- The reversed appearance of a drum-style card can cause the pilot to start a turn in the wrong direction.

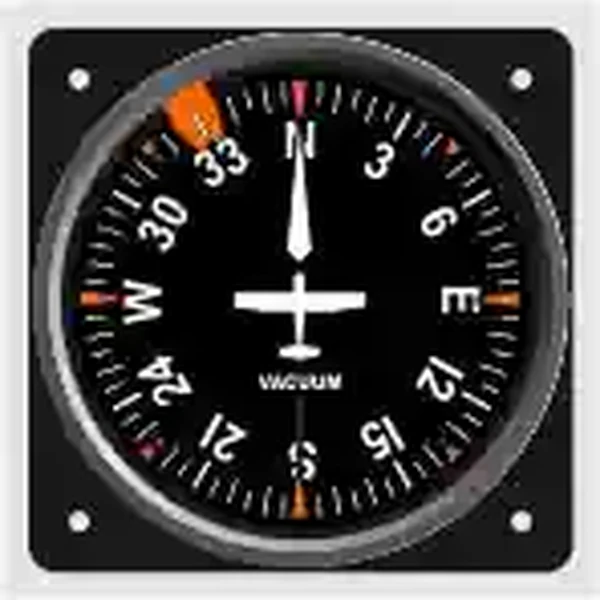

- Vertical-card heading indicators use the same gyroscopic principle but drive a forward-facing dial resembling a vertical-card magnetic compass, making the heading easier to interpret.
- On some mechanical heading indicators, pushing the setting knob engages the adjustment mechanism.
- With the mechanism engaged, turn the knob to align the compass card with the magnetic compass, following the installed instrument's procedure.
- After the knob disengages, the gyro maintains its reference as the aircraft turns around it.
- Many setting knobs are spring-loaded to disengage when released; confirm the operation of the installed instrument.
Flux Gate System
- Some heading indicators are slaved to a remote magnetic sensor, such as a flux gate or flux valve. []
- The flux gate senses the Earth's magnetic field, and the slaving system corrects the heading reference toward magnetic alignment.
- Slaved systems reduce workload by automatically correcting heading drift during normal operation.
- The magnetic sensor produces an electrical signal that is amplified and sent to the heading-reference unit.
- In a conventional slaved gyro system, the slaving transmitter signal drives a torque motor that precesses the gyro into alignment with the magnetic reference.
- In a slaved installation, the magnetic slaving transmitter provides an electrical heading reference for the horizontal situation indicator (HSI).
- Remote indicating compass designs vary; these descriptions cover their basic operating principles.
- Pilots must understand the controls, indications, and limitations of the installed equipment.
- Combining heading and navigation information in one display can reduce panel clutter and simplify the instrument scan.

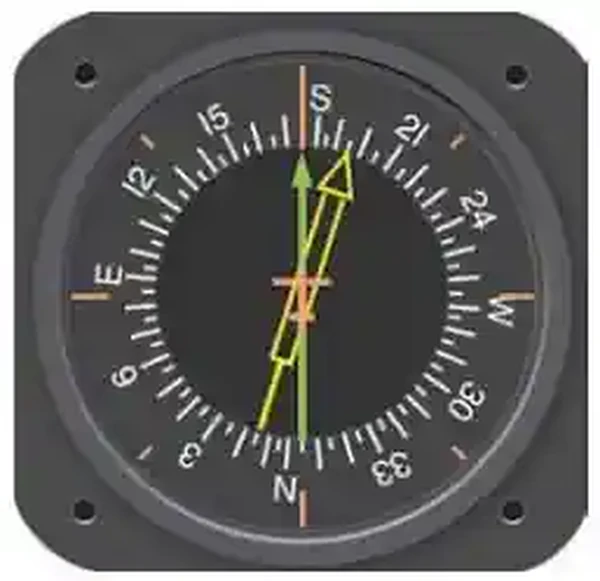

- In a radio magnetic indicator (RMI), the compass card displays heading, while bearing pointers may receive signals from an automatic direction finder (ADF) and a very high frequency omnidirectional range (VOR) receiver.
- In free-gyro mode, a compatible HSI's heading card can be manually aligned with the magnetic compass.
Horizontal Situation Indicators
- A horizontal situation indicator (HSI) combines heading with course-selection and course-deviation information. []
- An HSI may use a slaved or unslaved heading source; electronic installations may obtain heading from an attitude and heading reference system (AHRS).
- A mechanical heading gyro uses a double gimbal and horizontal spin axis to sense aircraft rotation about the vertical axis.
Remote Indicating Compasses and Radio Magnetic Indicators
- A radio magnetic indicator (RMI) combines a heading card with radio-bearing pointers. []

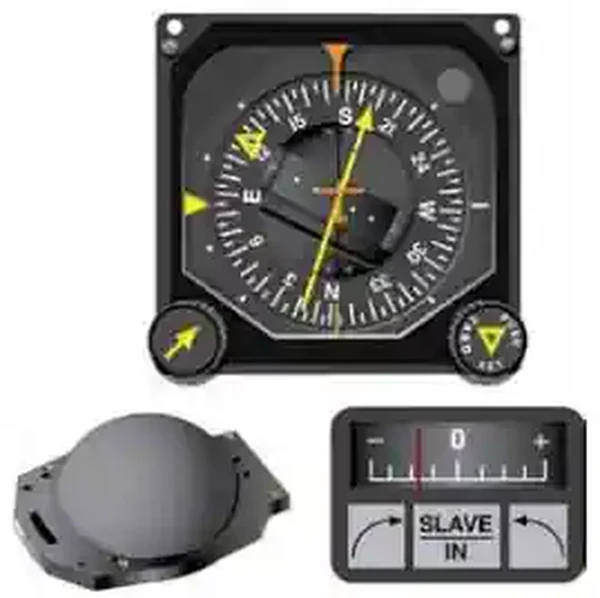

- A conventional remote indicating compass system may include these two panel-mounted components:
- Pictorial navigation indicator.
- Slaving control and compensator unit.
- In the conventional remote indicating compass system described here, the pictorial navigation indicator is an HSI.

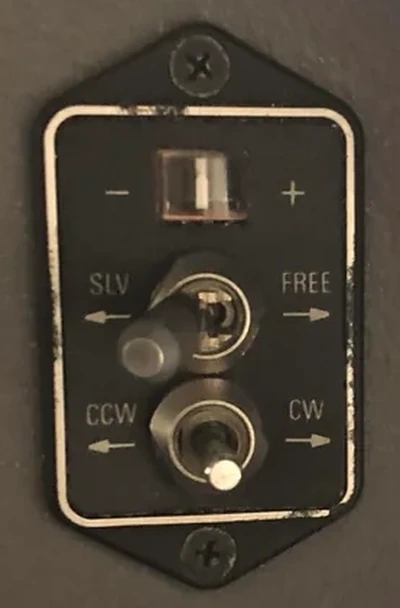

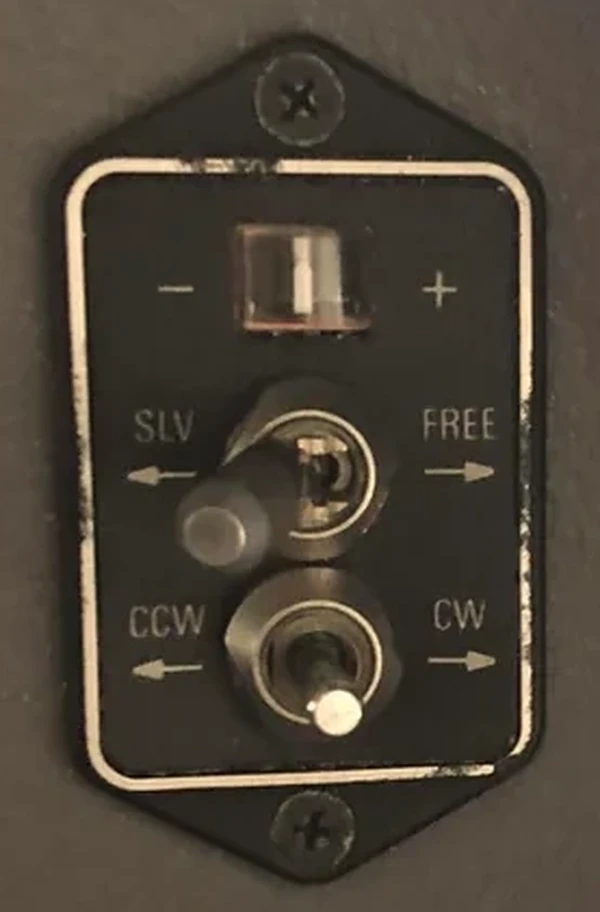

- The slaving control and compensator unit has a pushbutton that provides a means of selecting either the "slaved gyro" or "free gyro" mode.
- The unit also includes a slaving meter and two manual heading-drive buttons.
- The slaving meter shows disagreement between the displayed heading and magnetic reference.
- For this conventional system, right meter deflection indicates a clockwise compass-card error, and left deflection indicates a counterclockwise error.
- During turns, the slaving meter may show a large deflection as the card rotates; interpret it using the installed system's procedures.
- In free-gyro mode, use the appropriate heading-drive button to align the compass card with a reliable magnetic reference.
- The magnetic slaving transmitter is mounted remotely, often in a wingtip, to reduce magnetic interference.
- The transmitter contains the flux valve, which senses the Earth's magnetic field.
Instrument Errors
-
Tumble:
- A mechanical heading indicator may tumble if its pitch or bank limits are exceeded.
- Tumbling disturbs the gyro's reference and makes its heading indication unreliable until restored using the manufacturer's procedure.
- Pitch and bank limits vary by instrument; check them before maneuvers that could exceed the indicator's operating range (aerobatics).
- A mechanical heading indicator may tumble if its pitch or bank limits are exceeded.
-
Precession:
- Earth rotation and friction-related precession can cause an unslaved heading indicator to drift.
- The Earth rotates approximately 15° per hour, but the resulting apparent heading drift depends on latitude and instrument compensation.
- Compare an unslaved heading indicator with the magnetic compass approximately every 15 minutes, and realign it when needed.
- Make the comparison during straight-and-level, unaccelerated flight so compass turning and acceleration errors have settled.
- Earth rotation and friction-related precession can cause an unslaved heading indicator to drift.
Heading Indicator Regulations
- A gyroscopic direction indicator (directional gyro or equivalent) is required for IFR operations under 14 CFR 91.205(d)(9) for powered civil aircraft with standard U.S. airworthiness certificates.
- The heading indicator represents the first D in GRABCARDD, the additional IFR equipment mnemonic.
- The basic day and night visual flight rules (VFR) equipment list requires a magnetic direction indicator, rather than specifically requiring a gyroscopic heading indicator.
- The magnetic direction indicator represents the second M in ATOMATOFLAMES, the daytime VFR equipment mnemonic.
- Aircraft certification, operating limitations, equipment lists, or other operating rules may require additional heading equipment.
Heading Indicator Checks
- Before flight, align an unslaved heading indicator with the magnetic compass, using the compass correction card and equipment procedures as applicable.
- During flight, compare an unslaved heading indicator with the magnetic compass at least every 15 minutes and realign it as necessary during steady, straight-and-level, unaccelerated flight.
- For an unslaved heading indicator, follow the equipment procedure when aligning it with the magnetic compass.
- Distinguish heading from ground track when checking agreement.
- Turning and acceleration errors can make a transient magnetic-compass indication misleading.
- Use a stabilized comparison rather than resetting the heading indicator during those transients.
Inertial Reference Unit (IRU), Inertial Navigation System (INS), and Attitude Heading Reference System (AHRS)
- Glass flight decks may integrate IRU, INS, and AHRS information with air-data inputs; consult the installed system's documentation to identify the source of each indication.
- An electronic attitude display commonly receives information from an Attitude and Heading Reference System (AHRS); other installations may use an Inertial Reference Unit (IRU) or Inertial Navigation System (INS).
- IRUs are self-contained systems comprised of gyros and accelerometers that provide aircraft attitude (pitch, roll, and heading), position, and velocity information in response to signals resulting from inertial effects on system components.
- Once aligned with a known position, IRUs continuously calculate position and velocity. IRU position accuracy decays with time.
- This degradation is known as "drift."
- INSs combine the components of an IRU with an internal navigation computer.
- By programming a series of waypoints, these systems will navigate along a predetermined track.
- AHRSs are electronic devices that provide attitude information to aircraft systems such as weather radar and autopilot, but do not directly compute position information.
- Aircraft equipped with slaved compass systems may be susceptible to heading errors caused by exposure to magnetic field disturbances (flux fields) found in materials that are commonly located on the surface or buried under taxiways and ramps.
- These materials generate a magnetic flux field that can be sensed by the aircraft's compass system flux detector or "gate", which can cause the aircraft's system to align with the material's magnetic field rather than the earth's natural magnetic field.
- The system's erroneous heading may not self-correct.
- Before takeoff, check for heading misalignment that may have developed during taxi.
- Correct any heading misalignment using the manufacturer's or other applicable procedures before takeoff.
Operating Considerations:
- Aircraft may have one or more AHRS units, depending on the installed avionics configuration.
- Verify the installed configuration using the aircraft's Pilot's Operating Handbook/Airplane Flight Manual, applicable avionics supplements, and equipment list.
- Consult the applicable avionics pilot's guide to identify sensor-selection controls and source annunciations, such as AHRS 1 and AHRS 2, when provided.
- Two displays do not necessarily mean two independent AHRS sources; both displays may receive information from the same unit.
- Know which source supplies each display and follow the aircraft-specific procedures for a failed or disagreeing source.
- Complete initialization and alignment before relying on the indications, following the installed equipment's procedures.
- Do not assume every system permits the same aircraft movement or in-flight realignment conditions.
- The following failure examples apply to the legacy Cessna Nav III G1000 with GRS 77 AHRS shown above.
- Other installations and software versions may behave differently.
- Magnetometer failure can invalidate heading while attitude remains available.
- In this G1000 installation, the primary flight display (PFD) marks the invalid heading with a red X.
- Loss of GPS does not necessarily mean loss of attitude and heading.
- If one Global Positioning System (GPS) input fails, the AHRS uses the remaining input and issues an alert.
- If both GPS inputs fail, attitude and heading remain available while magnetometer and airspeed inputs remain valid.
- Loss of airspeed data together with GPS can invalidate both attitude and heading.
- Read advisory messages and identify which indications are invalid.
- Use the aircraft's abnormal procedures and available independent standby instruments rather than relying on red-X indications.
- Aircraft may have one or more AHRS units, depending on the installed avionics configuration.
Heading Indicator Anomalies and Malfunctions
- Normal drift versus a malfunction: a non-slaved mechanical heading indicator requires periodic alignment with the magnetic compass.
- Check alignment in straight-and-level, unaccelerated flight, when the compass indication is steady.
- Rapid or excessive drift, erratic movement, sticking, or failure to respond to a turn calls the indication into question rather than simply requiring another reset.
- Loss of vacuum or pressure: inadequate airflow slows an air-driven gyro and can produce progressively unreliable heading indications.
- Check the suction/pressure indication and compare other instruments sharing that power source.
- A gyro can continue displaying a plausible heading while slowing down, so do not wait for a complete stop before recognizing a failure.
- Electrical power loss: electrically powered heading instruments and their sensors may become unavailable or unreliable when their power supply fails.
- Check the applicable electrical indications and failure annunciations, following the aircraft checklist.
- Know which instruments share a power source and which standby indications remain independently available.
- Tumbling or loss of reference: exceeding a mechanical instrument's operating limits can disturb its gyro reference.
- Use the instrument-specific recovery or caging procedure only if prescribed by the aircraft or equipment manual.
- Cross-check the restored indication before relying on it.
- Slaving or electronic heading failure: a problem with the magnetic sensor, slaving system, heading reference, or display can cause disagreement, a failure flag, or loss of heading information.
- Use the installed system's annunciations and approved procedures to identify the affected source.
- Select an alternate heading source or free-gyro mode only where the equipment provides it and its operating instructions permit it.
- Respond to unreliable heading information: maintain aircraft control, cross-check independent instruments, and follow the Pilot's Operating Handbook/Airplane Flight Manual (POH/AFM) abnormal or emergency checklist.
- Use the magnetic compass with allowance for its turning and acceleration errors when it is the remaining reliable heading reference.
- Advise Air Traffic Control (ATC) when the failure affects compliance with a clearance or requires assistance.
- Document the discrepancy and have unresolved faults evaluated before further operation requiring that instrument.
Heading Indicator Knowledge Check
Choose the knowledge check that matches your current training for Heading Indicator.
PPL knowledge check
Core Knowledge Review
Review foundational knowledge, key concepts, and practical considerations. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
Sport knowledge check
Sport Pilot Knowledge
Review the foundational knowledge and decisions used in sport-pilot operations. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
CPL knowledge check
Advanced Application
Apply knowledge to advanced operations, risk management, and aeronautical decision-making. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
Instrument knowledge check
Instrument Knowledge
Practice the procedures, systems, weather, and decisions used in instrument flight. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
CFI knowledge check
Instructor Knowledge
Review the technical knowledge expected of an airplane flight instructor. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
CFII knowledge check
Instrument Instructor Knowledge
Review instrument knowledge at the depth expected of an instrument flight instructor. Topic: Heading Indicator.
- Immediate feedback
- Answer explanations
- Account progress tracking
Why Take a Quiz?
Quizzes reinforce key concepts, identify knowledge gaps, and build confidence for real-world decisions. Quiz material is representative of the information provided here and is not based on or sourced from the Federal Aviation Administration test bank.
Heading Indicator Interactive Scenario
The Drifting Heading on a Night Cross-Country
Detect precession, realign the heading reference, and manage a failure before entering worse visibility. Abbreviations used in this scenario: Global Positioning System (GPS).
Scenario Complete
Heading Indicator Conclusion
- The heading indicator provides a stable heading reference for navigation and maneuvering.
- It does not directly indicate bank angle, and aircraft heading can differ from ground track in wind.
- An unslaved mechanical heading indicator must be aligned with a reliable magnetic reference and checked for drift.
- Make magnetic-compass comparisons in straight-and-level, unaccelerated flight with a steady compass indication.
- Slaved and electronic systems also require verification.
- Magnetic interference, source faults, or alignment problems can produce incorrect heading information.
- Know what each display component represents.
- On a horizontal situation indicator or radio magnetic indicator, the heading card, selected course, deviation indication, and bearing pointers provide different information.
- Investigate excessive drift, erratic movement, or disagreement rather than repeatedly resetting a suspect instrument.
- Cross-check independent references, identify any shared power or sensor failure, and follow the installed system's abnormal procedures.
- View the instrument as directly as possible to minimize parallax error.
Heading Indicator References
- Federal Aviation Administration (FAA) - Pilot/Controller Glossary.
- Aeronautical Information Manual (1-1-15) Inertial Reference Unit (IRU), Inertial Navigation System (INS), and Attitude Heading Reference System (AHRS).
- Instrument Flying Handbook (3-15) Remote Indicating Compass
- Instrument Flying Handbook (3-19) Heading Indicators.
- CFI Notebook.net - Magnetic Compass.
- CFI Notebook.net - Pitot Static and Vacuum Systems.
- CFI Notebook.net - Very High Frequency Omni-Directional Range (VOR).
- Federal Aviation Administration - Instrument Flying Handbook.
