Stall Performance Introduction

  • Stalls are an aerodynamic condition whereby air can no longer smoothly flow over an airfoil, resulting in a rapid loss of lift
  • Stalls are ultimately brought on by exceeding the critical angle of attack
  • A stall is, therefore, an aerodynamic condition in which the Angle of Attack (AoA) becomes so steep that air can no longer flow smoothly over the airfoil
  • Said another way, a stall is a condition of flight in which an increase in AoA results in a decrease in lift
    • Angle of Attack (AoA/Alpha): the angle between the relative wind and the chord line of an airfoil
    • Critical AoA: the angle of attack whereby any further increase will result in a separation of airflow, which results in a stall
  • An airfoil's ability to provide sufficient lift is dependent upon the load factor, that is, the amount of lift required to support the aircraf's load in flight
  • Load factor is not just dependent on the aircraft weight the wings must support, but also the angle of bank that contributes to the effective aircraft weight
  • Upon airflow separation from the wing, the airfoil will no longer produce lift
  • The angle of attack is measured in arbitrary units
  • Approaching the critical angle of attack, several indications of a stall will be present, warning pilots of pending danger
  • Despite an abstract concept in abstract units, several stall speed considerations are considered in aircraft design and performance envelopes to keep aircraft inside of the normal flight envelope
  • Still, stall avoidance practices are critical
  • Of note, compressor stalls are a result of the same airfoil stall principles but are specific to turbine aircraft and generally not a factor when aircraft operate inside of their normal flight envelope


Stall Performance

Defining Aircraft Stalls

  • Stalls to most conjur images of an engine turning off like in a car with mechanical trouble
  • In aviation, however, stalls are an aerodynamic condition which occurs when smooth airflow over the airplane's wings is disrupted, resulting in loss of lift
  • The loss of lift causes that stalled surface to "stop flying"
  • While the concept of a stall sounds like a terrifying experience, they are quite predictable and therefore a subject of training syllabus to identify the risk factors, recognize the occurance, and perform corrective actions to return the airfoil to the appropriat normal flight condition


Stall Performance

Effects of Angle of Attack on Stall Performance

  • Instrument Flying Handbook, Angle of Attack and Relative Wind
    Instrument Flying Handbook, Angle of Attack and Relative Wind
  • The angle of attack is fundamental to understanding many aspects of airplane performance, stability, and control
  • AoA is the acute angle measured between the relative wind or flight path and the chord of the airfoil [Figure 1]
    • Flight Path: Path described by its center of gravity as it moves through an air mass
    • Relative Wind: Airflow the airplane experiences as it moves through the air
    • Angle of Incidence: The chord line of the wing is angled up when attached to the fuselage
    • Pitch Attitude: Angle between an airplane's longitudinal axis and the horizon
      • Equal in magnitude and opposite in direction to the flight path
      • Note that flightpath, relative wind, and angle of attack should never be inferred from pitch attitude
  • Any time the control yoke or stick moves fore or aft, the AOA is changed
    • As the AOA increases, lift increases (all other factors being equal)
    • When the aircraft reaches the maximum AOA, lift begins to diminish rapidly
      • This is the stalling AOA, known as the maximum critical lift ("CL-MAX") or the critical AOA
    • The CL increases until reaching the critical AOA, then decreases rapidly with any further increase in the AOA [Figure 2/3]
  • The lift created (or reduced in the case of negative AoA) is measured with the coefficient of lift, which relates to the AoA
  • Every airplane has a specific angle of attack where maximum lift occurs
    • This is called the critical angle of attack, at which point, regardless of airspeed, flight attitude, or weight, the airfoil will stall
  • With an understanding that the angle of attack is the wing's relative "bite" out of the air, this can put airflow principles in perspective
  • Instrument Flying Handbook, Angle of Attack and Relative Wind
    Instrument Flying Handbook, Angle of Attack and Relative Wind


Stall Performance

Effects of Airflow/Airspeed on Stall Performance

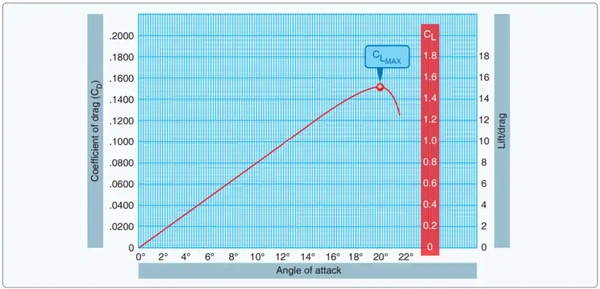

  • CL-Max
    CL-Max

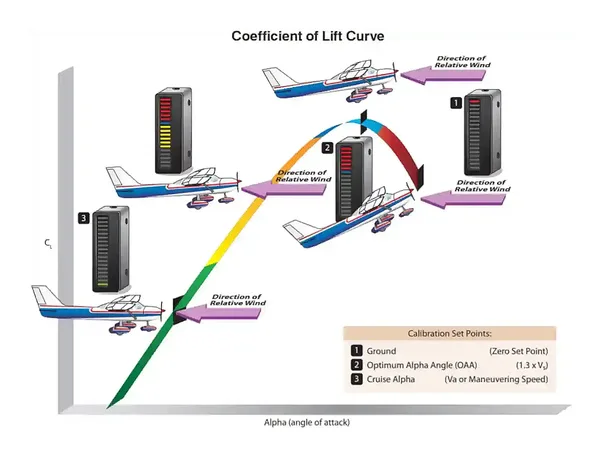

  • Coefficient of Lift Curve
    Coefficient of Lift Curve
  • To better understand how air flows over a wing, you must first understand its characteristics
  • Airflow can either be laminar or turbulent and referenced to in layers
  • Boundary-Layer:

    • The boundary layer is the layer of airflow over a surface that demonstrates local airflow retarding due to viscosity (as it gives up kinetic energy to friction)
    • The air molecules in the boundary (surface) layer have zero velocity in relation to the surface; however, the layer just above moves over the stagnant molecules below because it is pulled along by a third layer close to the free stream of air
    • The velocities of the layers increase as the distance from the surface increases until free stream velocity is reached
    • The total distance between the aircraft surface and the free stream velocity is called the boundary layer
      • At subsonic levels, the cumulative layers are about the thickness of a playing card, increasing in thickness as it moves aft
    • When air flows across any surface, friction develops
    • As a viscous fluid resists flow or shearing, the adjacent layer of air slows
      • Succeeding streamlines slow less until eventually, some outer streamline reaches the free airstream velocity
    • Laminar Flow:

      • The air moves smoothly along in streamline
    • Turbulent Flow:

      • Streamlines that break up causing the flow to be disorganized and irregular
      • Produces higher friction than laminar
      • Adheres better to the surface of the airflow, delaying separation
    • Traction pads and even bugs can disrupt laminar flow and affect aircraft performance
  • Pressure Gradients:

    • Favorable Pressure Gradient:

      • A Favorable Pressure Gradient (FPG) assists the boundary layer in adhering to the surface by maintaining its high kinetic energy
      • As air flows aft from the point of maximum thickness toward the trailing edge (low to high static pressure), it encounters an adverse pressure gradient
    • Adverse Pressure Gradient:

      • An Adverse Pressure Gradient (APG) impedes the flow of the boundary layer
      • Strongest during high lift conditions and at high AoAs, in particular
      • If the boundary layer does not have sufficient kinetic energy to overcome the APG, then the lower levels of the boundary layer will stagnate and separate as airflow reverses
      • As separation moves forward, the net suction decreases, and CL decreases, resulting in a stall
      • Even at low angles of attack, there will be a small APG behind the point of maximum thickness
        • As the separation moves forward with increasing AoA, eventually, the air cannot conform to the sharp turn
  • Airspeed:

    • As airspeed increases, airflow is more laminar, which maintains FPG.
    • As airspeed decreases, airflow begins to separate, becoming turbulent, which creates APG.
    • Higher airspeeds also reduce the angle of attack required, increasing stall margin.
    • The high angle of attack at low airspeeds most commonly results in stall conditions.
      • Recall aircraft can exceed the critical angle of attack at any airspeed.


Stall Performance

Effects of Load Factor on Stall Performance

  • Load factor is the weight the wings are supporting
  • Load factor is generally not calculated as part of preflight however, it has a close relation to stall speed, which is very important
    • As load factor increase, stall speed increases
  • In level flight, the load factor is the weight of the aircraft
    • This is due to the aircraft feeling "1-g" or 1 times the force of gravity
  • As you increase the angle of bank however, a pilot must pull back on the controls in order to avoid descending due to the loss of vertical lift, which then raises the load factor
  • Calculating Load Factor:

    • Pilots will generally rely on the 60° angle of bank is 2-Gs rule of thumb, after all, performance charts are designed with the technical data considered
    • Still, pilots can be more precise if they chose by using some relatively simple math
    • Crosswind Component Chart

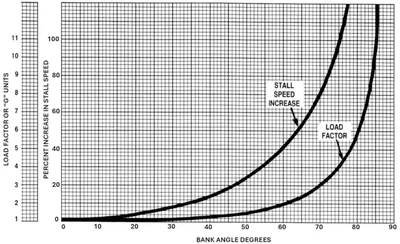

      Load Factor vs. Stall Speed
    • Load Factor Formula:

      Load Factor = 1 / cos(angle of bank)
    • Conditions:

      • Given an angle of Bank of 60°
    • Calculation:

      • Load Factor = 1 / cos(60)
      • Load Factor = 1 / 0.5
      • Load Factor = 2
    • Chart:

      [Figure 1]
      • Look at the 60° mark at the bottom of the chart and move up until you intercept the load factor reference line
      • Move over to the left and see the load factor imposed on the aircraft
        • You should come up to approximately 2
    • Crosswind Component Chart
      Load Factor vs. Stall Speed


Stall Performance

Effects of Power on Stall Performance

  • Stall practice is necessary to feel for when the aircraft is behind the power curve (sometimes referred to as a region of reverse command) and how to successfully recover
  • The aircraft is said to be behind the power curve whenever operating below the best endurance speed
    • Best endurance is defined as the minimum power required to maintain level flight, which in Cessna 172s will come in at about 60 knots
  • In normal flight, pitch controls altitude and power controls airspeed
  • When operating in the region of reverse command, the controls reverse and pitch controls airspeed and power controls altitude
  • Said differently, when behind the power curve, more power will be needed to overcome drag
  • Pilots will operate in both throughout flight, with the most terminal phases of takeoff and landing occuring when behind the power curve


Stall Performance

Effects of Weight/Center of Gravity on Stall Performance

  • Control surfaces stall because they exceed their angle of attack
  • Angles of attack are increased to increase lift to support the flight conditions, most basic of which is weight
  • As weight increases, more lift is required to maintain level flight, increasing stall speed
    • Correspondingly, as weight decreases, less weight is required to maintain level flight, decreasingstall speed
  • Center of gravity indirectly impacts when an aircraft will stall and how it will perform
  • As the center of gravity moves forward, aircraft must increase lift, and therefore stall speed increases
    • Correspondingly, as the center of gravity moves aft, less downforce is required and stall speed decreases
  • If an aircraft stalls for a forward CG, it is easier to recover because the nose will tend to drop
  • ,li>An aircraft with an aft CG will not have a tendency to drop the nose and therefore stall recovery will be delayed (more altitude lost)
  • Weight and balance calculations performed during preflight planning indirectly inform stall performance by giving pilot's an expectation on how the aircraft will perform


Stall Performance

Effects of Angle of Bank on Stall Performance

  • As mentioned above, stall speed increases with load factor due to a loss in the vertical component of lift
  • Increasing bank angle increases load factor, which increases stall speed
    • Correspondingly, decreasing bank angle decreases load factor, which decreases stall speed
  • Calculating Stall Speed:

    • Load Factor Formula:

      Stall Speed Banked = [Stall Speed Level x Square Root of Load Factor]
    • Conditions:

      • Given an aircraft with a stall speed of 48 knots with a load factor of 2 (60° angle of bank)
    • Calculation:

      • Stall Speed Banked = [Stall Speed Level / Square Root of Load Factor]
      • Square Root of 2 = 1.41
      • Stall Speed Banked = 48 x 1.41
      • Stall Speed Banked = 68 KIAS
    • Chart:

      [Figure 1]
      • Look at the 60° mark at the bottom of the chart and move up until you intercept the stall speed increase reference line
      • Move over to the left and see the percent increase in stall speed
        • You should come up with an increase in stall speed of approximately 41%
          • Stall Speed Banked = [Stall Speed Level x percent increase in stall speed]
          • Stall Speed Banked = 48 x 1.41
          • Stall Speed Banked = 68 KIAS


Stall Performance

Approaches to Stalls

  • Select an altitude where recovery will occur no lower than 1500' AGL
  • Commence a clearing turn
  • While maintaining heading, reduce power, adjusting pitch (trim) to maintain altitude
  • For Dirty Configuration:
    • Below VLO, extend the landing gear and verify 3 down and locked
    • Below VFE, extend the flaps for takeoff or landing configurations
    • Adjust pitch (trim) to maintain altitude
  • Advance the propeller control to full forward (high rpm) as required
  • While maintaining altitude, slowly establish the pitch attitude, power setting, and if applicable, bank (15-30°) that would induce a stall
  • At the first indication of an impending stall, calling, "stalling," and initiate recovery, maintaining heading while/ smoothly and continuously increasing power to full and adjusting pitch to maintain altitude (trim)
  • For Dirty Configuration:
    • Right rudder will be necessary to counteract the increase in p-factor
    • As airspeed increases, raise the flaps in increments, to 10°:
      • Too abrupt of flap retraction will result in a dramatic loss of lift and possibly stall
    • As airspeed increases, but below VLO raise the landing gear
    • At or above Vx retract flaps to 0°
  • As cruise airspeed is attained, set cruise power
    • Re-trim as necessary
  • Complete the Cruise Flow/Checklist


Stall Performance

Effects of Coordinated Flight on Stall Performance

  • Stalls in Coordinated Flight:

    • If the coordination of the turn at the time of the stall is accurate, the airplane's nose will pitch away from the pilot just as it does in a straight flight stall
  • Stalls in Uncoordinated Flight:

    • If the airplane is slipping toward the inside of the turn at the time of the stall, it tends to roll rapidly toward the outside of the turn as the nose pitches down, because the outside wing stalls before the inside wing
    • If the airplane is skidding toward the outside of the turn, it will have a tendency to roll to the inside of the turn, because the inside wing stalls first
    • Stalling will occur at a higher airspeed and thus, a lower than expected pitch resulting in a quick, unexpected stall
    • If an uncoordinated turn is made, one wing may tend to drop suddenly, causing the airplane to roll in that direction; if that occurs, the excess back-elevator pressure must be released, power added, and the airplane returned to straight-and-level flight with coordinated control pressure
    • Note that in a slip, the outside wing is experiencing slower movement through the air resulting in a higher angle of attack to maintain lift
      • In the event of a stall, the aircraft will then roll to the outside wing (due to higher angle of attack)
      • The reverse is true for a slip, where the inside wing drops first due to the relative slower movement through the air


Stall Performance

Stall Speed Effects on Stall Performance

  • As AoA increases up to CL MAX AoA, True Airspeed (TAS) decreases to a point where it cannot be any slower than stall speed (Vs)
  • Airspeeds may change based on weight and configuration, but units of AoA remain the same
    • You can stall at any airspeed
    • Going too slow causes high AoA, while going too fast causes shock waves on aircraft not designed for supersonic or even transonic flight, causing the same disruption as high AoA
  • Weight:

    • As weight decreases, so does stall speed due to less lift required
    • Dropping a payload or just using fuel decreases stall speed and, thus, approach speed (AoA approaches)
  • Altitude:

    • Higher altitude results in fewer air molecules, so a higher TAS is required; however, indicated airspeed remains the same
    • Increased altitude results in increased stall speed

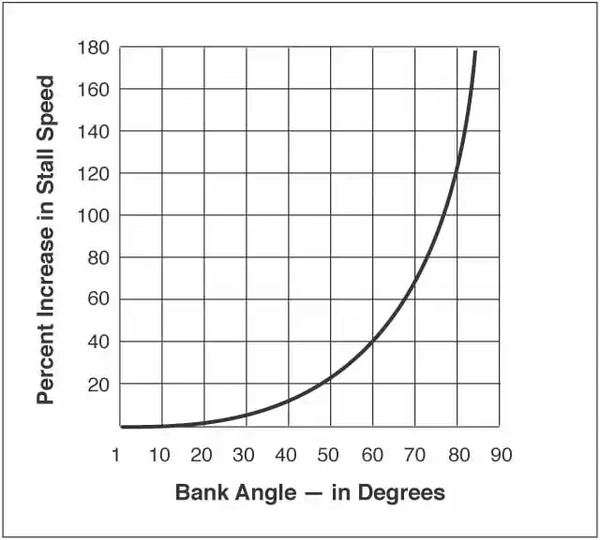

  • Angle of Bank vs. Stall Speed
    Angle of Bank vs. Stall Speed
  • Angle of Bank:

    • As you increase your angle of bank, stall speed increases [Figure 4]
    • This is because the vertical component of lift has decreased, resulting in the pilot raising the angle of attack to produce more lift until stalling (at a lower speed)
    • See turns
  • Power Off/On:

    • Power-on conditions will have lower stall speeds as the aircraft is supported partially by the vertical component of thrust
    • Also, with the power, you will have induced airflow over the wings


Stall Performance

Effects of Aircraft Design on Stall Performance

  • Geometric Twist/Washout
    Geometric Twist/Washout
  • Stall Strips
    Stall Strips
  • Wing Tailoring:

    • Wing tailoring makes stalling characteristics more predictable by attempting to stall the root first
    • Power-on stalls may tend to stall at the tip first due to induced lift
    • With the wings stalling at the root first, the aircraft maintains some aileron authority
  • Geometric Twist/Washout:

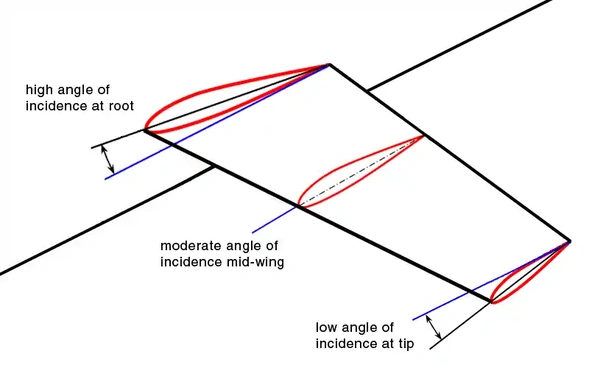

    • A decrease in the angle of incidence from wing root to wingtip [Figure 1]
      • The wing gradually twists downward, decreasing its AoA
  • Aerodynamic Twist (Section Variation):

    • The gradual change in airfoil shape accomplished by a decrease in camber from root to tip and/or reducing the chord
  • Stall Fences:

    • Redirect the airflow along the chord
    • Allows the wing to achieve a higher AoA without stalling (delaying tip stall)
  • Vortex Generators:

    • Vortex generators increase turbulent flow over the wings to delay separation
  • Stall Strips:

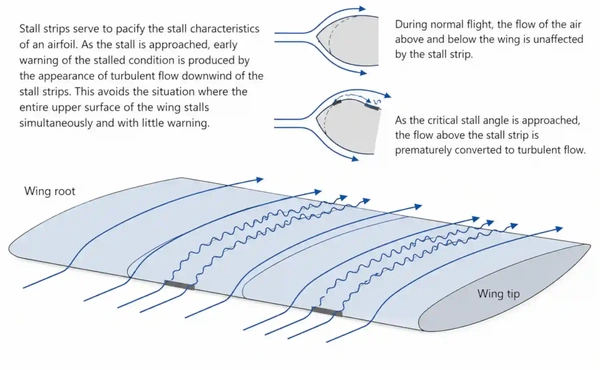

    • Sharply angled piece of metal at the root section to induce a stall at the root [Figure 6]
    • Subsonic air cannot make sharp angles
    • Stall Strips
      Stall Strips
  • Flaps/Slats:

    • Lowering flaps decreases stall speed and increases drag
    • Raising flaps increases stall speed back to Vs speed while also decreasing drag
    • Consider the impacts of configuration changes (and, more importantly, the stall speed) when in a low, slow, and potentially go-around situation
    • The same for flaps is true for slats, although slat deployment is generally automatic


Stall Performance

Stall Recognition

  • Feel:

    • The pilot will feel control pressures change as speed reduces
      • With progressively less resistance on the control surfaces, the pilot must use larger control movements to get the desired airplane response
      • The pilot will notice the airplane's reaction time to control movement increases
      • Just before the stall occurs, buffeting, uncommanded rolling, or vibrations may begin to occur
    • If installed, rudder pedals or stick shakers will engage leading up to a stall
  • Vision:

    • Since aircraft can stall in any attitude, vision is not a foolproof indicator of an impending stall
      • However, maintaining pitch awareness is important
    • If installed, warning lights will illuminate leading up to a stall
  • Hearing:

    • As speed decreases, the pilot should notice a change in sound made by the air flowing along the airplane structure
    • If installed, horns or buzzers will sound leading up to a stall
  • Kinesthesia:

    • The physical sensation (sometimes referred to as "seat of the pants" sensations) of changes in direction or speed is an important indicator to the trained and experienced pilot in visual flight
      • This sensitivity can warn the pilot of an impending stall


Stall Performance

Stalls Related to Icing

  • Stalls due to icing are particularly insidious as the indications may not be present or are entirely different
  • Icing causes the aircraft to stall at a lower-than-normal angle of attack, potentially before the pilot can recognize an abnormal condition
  • Icing-related stalls may not have an accompanying stall horn due to the frozen position of the indicator or because aircraft will stall at a lower-than-normal angle of attack
  • Stall speed may decrease by as much as 20 knots
  • Pilots may experience lightness in the controls, difficulty trimming, or PIO
  • Certification information (if certified) can be found in FAA Notice (8900.267) Focused Review of Flightcrew Member Training for Ice-Contaminated Tailplane Stall or on the Type Certificate Data Sheet (TCDS)
  • Slow usually indicates wing stall whereas, fast usually indicates tail stall


Stall Performance

Stall Recovery Fundamentals



Stall Performance

Stall Avoidance

  • Avoid flying at minimum airspeeds
  • Remain in the normal flight envelope
  • Avoid abrupt maneuvers


Stall Performance

Compressor Stalls

  • Compressor stalls, while related in their cause, have nothing to do with the wing
  • To learn more about compressor stalls, visit the Powerplant page


Stall Performance

Common Training Aircraft Stall Warning System Characteristics

  • Stalls, Spins, and Safety Revised Edition
    Stalls, Spins, and
    Safety Revised Edition
  • Piper Arrow:

    • Activated by a lift detector on the left-wing
    • Activates 5 to 10 knots before stall
    • Warning horn sounds at 90Hz


Stall Performance

Stall Performance Conclusion

  • There is no question why it is important to understand stalls
  • Stalls are dependent on AoA only, and the only way to recover is to reduce the AoA
  • Pilots without an AoA indicator often reference stall speeds, which are effected by weight, center-of-gravity, bank angle/load factor
  • A stall can occur at any pitch attitude or airspeed, despite common discussions regarding stall "speed"
  • To learn more, check out Stalls, Spins, and Safety
  • To learn more about stalls and airflow, check out NASA's FOILSIM III
  • Still looking for something? Continue searching:


Stall Performance

Stall Performance References
